Ball Float Traps

Air Traps Ball Float Traps AG29

Air Traps Ball Float Traps

AG29

  • SCCV System
  • Stainless Steel
  • Supports condensate recovery
  • Horizontal installation
  • Vertical installation
  • Bypass function
  • Auto blow-off

    Can be used for gas pipings

    Air Traps Ball Float Traps AG29

    Features/Applications

    Features

    • Superb sealing and durability

      Offers superb sealing and durability thanks to the MIYAWAKI SCCV System. This valve mechanism was developed by MIYAWAKI to increase valve durability and ensure maximum sealing performance.

    • Easy maintenance

      All units are attached to the cover, making maintenance easy.


    *’SCCV System’ is an abbreviation for Self Closing and Centering Valve System and internationally patent.



    Typical applications

    Suitable for air pipings, aftercoolers, receiver tanks, gas pipimgs, and other such applications.

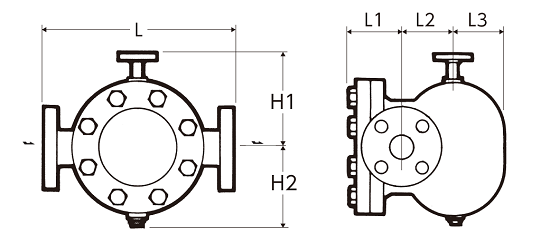

    Dimensions/Weight

    Dimensions/Weight




    Size Dimensions (mm) Dimensions (in) Weight
    L L1 L2 L3 H1 H2 L L1 L2 L3 H1 H2 (kg) (lb)
    1/2” 340 95 80 85 200 120 13.4 3.7 3.1 3.3 7.9 4.7 26,0 57.2
    3/4”
    1”

    *Available flange standards: ASME/JPI, DIN, JIS
    *Please contact MIYAWAKI for further information.

    Specifications

    Model Connection

    Max.

    operating pressure

    Max.

    operating pressure differential

    Max.

    operating temperature

    Body

    material

    Type Size PMO(MPa) PMO(psig) ⊿PMX(MPa) ⊿PMX(psig) TMO(℃) TMO(℉)
    AG29-3

    Flanged*1

    FF,RF

    1/2” 1,0 145 0,3 43.5

    300

    572

    Ductile cast iron

    FCD450



    3/4”
    1”
    AG29-10 1/2” 1,0 145 1,0 145
    3/4”
    1”
    *Available flange standards: ASME/JPI, DIN, JIS

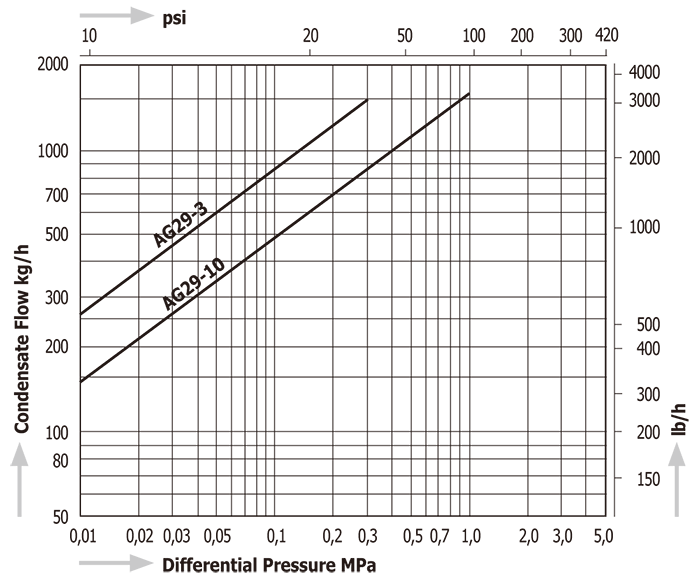

    Discharge Capacity


    Features

    • Superb sealing and durability

      Offers superb sealing and durability thanks to the MIYAWAKI SCCV System. This valve mechanism was developed by MIYAWAKI to increase valve durability and ensure maximum sealing performance.

    • Easy maintenance

      All units are attached to the cover, making maintenance easy.


    *’SCCV System’ is an abbreviation for Self Closing and Centering Valve System and internationally patent.



    Typical applications

    Suitable for air pipings, aftercoolers, receiver tanks, gas pipimgs, and other such applications.

    Dimensions/Weight




    Size Dimensions (mm) Dimensions (in) Weight
    L L1 L2 L3 H1 H2 L L1 L2 L3 H1 H2 (kg) (lb)
    1/2” 340 95 80 85 200 120 13.4 3.7 3.1 3.3 7.9 4.7 26,0 57.2
    3/4”
    1”

    *Available flange standards: ASME/JPI, DIN, JIS
    *Please contact MIYAWAKI for further information.

    Model Connection

    Max.

    operating pressure

    Max.

    operating pressure differential

    Max.

    operating temperature

    Body

    material

    Type Size PMO(MPa) PMO(psig) ⊿PMX(MPa) ⊿PMX(psig) TMO(℃) TMO(℉)
    AG29-3

    Flanged*1

    FF,RF

    1/2” 1,0 145 0,3 43.5

    300

    572

    Ductile cast iron

    FCD450



    3/4”
    1”
    AG29-10 1/2” 1,0 145 1,0 145
    3/4”
    1”
    *Available flange standards: ASME/JPI, DIN, JIS
