Sight Glasses

Ancillary Equipment Sight Glasses TS1

Ancillary Equipment Sight Glasses

TS1

  • SCCV System
  • Stainless Steel
  • Supports condensate recovery
  • Horizontal installation
  • Vertical installation
  • Bypass function
  • Auto blow-off

    Ball type Check valve functionality

    Ancillary Equipment Sight Glasses TS1

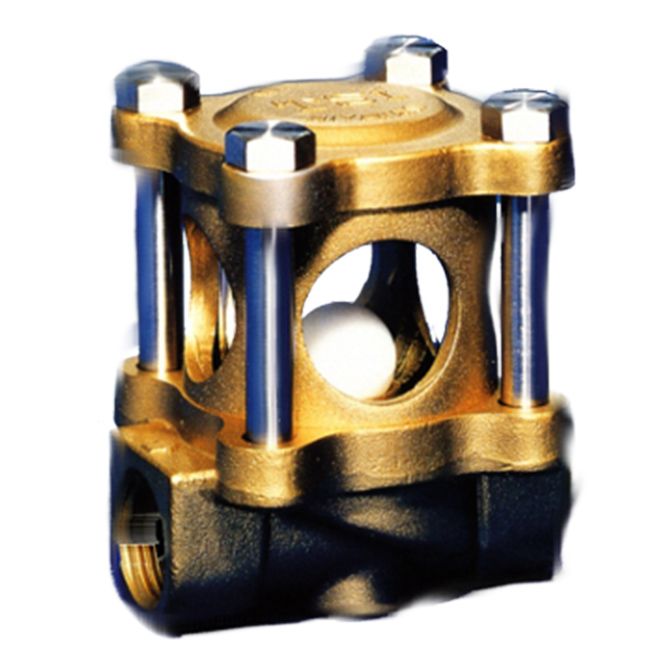

    Features/Applications

    Features

    • Check valve functionality

    • Fluorocarbon polymer ball (valve) makes it possible to check slight condensate flows

    • Simple maintenance

    Typical applications

    Suitable for the check of steam trap operation.

    (Install at least 1m away from the steam trap outlet.)

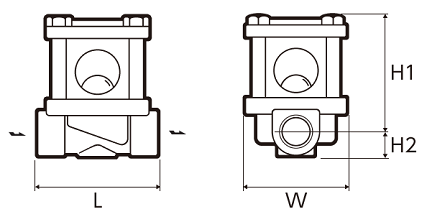

    Dimensions/Weight

    Dimensions/Weight




    Size Dimensions (mm) Dimensions (in) Weight
    L H1 H2 W L H1 H2 W (kg) (bg)
    1/2” 80 69 14 60 3.1 2.7 0.6 2.4 0,8 1.8
    3/4” 71 17 2.8 0.7 0,85 1.9
    1” 85 76 21 3.4 3.0 0.8 1,2 2.6

    Specifications

    Model Connection

    Max. operating

    pressure

    Max. operating

    temperature

    Body

    material

    Type Size

    Steam

    (MPa)

    Steam

    (psig)

    Water/

    hot water

    (MPa)

    Water/

    hot water

    (psig)

    Steam

    (℃)

    Steam

    (℉)

    Water/

    hot water

    (℃)

    Water/

    hot water

    (℉)

    TS1

    Screwed

    Rc

    1/2” 0,8 116 1,0 145 180 356 100 212

    Brass

    C3771

    3/4”
    1”

    ●Replace the glass tube/gasket/O-ring every year.
    ●Install at least 1m from the trap outlet.
    ●Do not use with pipes in which water hammer occurs.

    Installation Examples


    Download

    * Membership registration is required to download the documents.

    Features

    • Check valve functionality

    • Fluorocarbon polymer ball (valve) makes it possible to check slight condensate flows

    • Simple maintenance

    Typical applications

    Suitable for the check of steam trap operation.

    (Install at least 1m away from the steam trap outlet.)

    Dimensions/Weight




    Size Dimensions (mm) Dimensions (in) Weight
    L H1 H2 W L H1 H2 W (kg) (bg)
    1/2” 80 69 14 60 3.1 2.7 0.6 2.4 0,8 1.8
    3/4” 71 17 2.8 0.7 0,85 1.9
    1” 85 76 21 3.4 3.0 0.8 1,2 2.6
    Model Connection

    Max. operating

    pressure

    Max. operating

    temperature

    Body

    material

    Type Size

    Steam

    (MPa)

    Steam

    (psig)

    Water/

    hot water

    (MPa)

    Water/

    hot water

    (psig)

    Steam

    (℃)

    Steam

    (℉)

    Water/

    hot water

    (℃)

    Water/

    hot water

    (℉)

    TS1

    Screwed

    Rc

    1/2” 0,8 116 1,0 145 180 356 100 212

    Brass

    C3771

    3/4”
    1”

    ●Replace the glass tube/gasket/O-ring every year.
    ●Install at least 1m from the trap outlet.
    ●Do not use with pipes in which water hammer occurs.


    * Membership registration is required to download the documents.
