Steam Fired Instantaneous Water Heater | Circulation Method

Hot Water Supply System Steam Fired Instantaneous Water Heater | Circulation Method HF25

Hot Water Supply System Steam Fired Instantaneous Water Heater | Circulation Method

HF25

      ・Indirect heating ・End stop system ・Circulation Method ・Hot water supply up to 95℃ (203°F)

      Hot Water Supply System Steam Fired Instantaneous Water Heater | Circulation Method HF25

      Features/Applications

      Features

      • Excellent stability

        Uses a patent-pending temperature control system.
        Temperature controlled to within ±3% of the specified temperature.

      • Quick hot water with easy operation.

        Can supply high-temperature hot water at 95℃ (203°F) in as little as 20 seconds*
        Reduces lead-time before operations can start.
        *Time from opening of adjustment valve
        Also features a touch panel to make operations and checking information on the screen quick and easy.
        You can check the current temperature and hot water flow rate and pressure with a single glance.

      • Constant, reliable water quality

        Indirectly heats up cold water using the heat from steam.

        Conforms to the standards of Japan’s Water Supply Act, and has passed leaching tests for water supplied by water heaters. The water it supplies can be used in foodstuff manufacturing.
        It is also suitable for cleaning and sterilization use at 83℃ (181°F) or higher in the foodstuff industry.

      • Low-cost hot water generation

        Uses almost all condensate sensible heat thanks to improved efficiency. This represents a use of energy that is 1.2 times more effective than using only the latent heat in steam, and enables the low-cost generation of hot water. Up to two thirds lower power consumption compared to previous products.

      • Designed to offer highly expandable control*1

        This product can be used flexibly and enables linking with water supply tanks or other existing devices, remote control, and other such usages.

      Other features

      • Statutory inspections not required

        [Low water level protection device] [Overheating prevention program] [Pump overload protection]

        Condensate recovery

        Flexible customization



      • Three safety functions to provide error alerts

        Temperature control to handle rapid drastic changes in hot water supply volume

        Monitoring of water heater status



      Typical applications

      ● Cleaning and sterilization of cooking equipment
      ● Cleaning and cooling processes on manufacturing lines
      ● Foodstuff process preparation and heating
      ● Baths at hotels, etc.



      *1 [Expandability]
      ・ Water heater operation based on external input
        operation actions, set temperature switching, operation frequency, flow rate and pressure changes
      ・ Change in water supply pressure
      ・ Linking with other devices
        A range of customizations other than listed above are possible including


      the installation of a hot water storage tank, operational linking to water heaters in accordance with hot water storage tank status, etc. Please do not hesitate to make inquiries.

      Dimensions

      Dimensions/Weight



      Dimensions (mm)

      Dimensions (in)

      Weight

      Weight during operation
      W H D W H D (kg) (lb) (kg) (lb)

      530

      1600

      1220 20.9 63.0 48.0 280 617.4 340 749.7

      *Please provide at least 800mm (31.5in) of maintenance space around the unit.

      Specifications

      inlet

      Model Connection Size (")

      Water

      inlet

      Steam

      Air

      inlet

      Hot water

      supply

      Return

      hot water

      Hot water

      removed

      Steam

      condensate

      Overflow

      (Water supply tank)

      Overflow

      (Condensate tank)

      HF25 Screwed 1” 1” 1/4” 1” 1/2” 1” 1/2” 1” 3/4”



      Model

      Max. water

      supply

      temperature

      Power

      source

      Electrical

      capacity

      Current

      rating

      Max. heat

      exchange

      capacity

      Operating pressure range

      (MPa)

      Operating pressure range

      (psig)

      (℃) (℉) (V) (kW) (A) (kW) Steam

      Water

      supply

      Air Steam

      Water

      supply

      Air
      HF25 95 203

      AC200

      (3-phase)

      0.9 4 210 0,2 - 0,35
      flow pressure
      0,1 - 0,4
      flow pressure
      0,4 - 0,7
      flow pressure
      29 - 50.8
      flow pressure
      14.5 - 58.0
      flow pressure
      58 - 101.5
      flow pressure



      Model Heating method Hot water supply method Hot water supply pressure
      (MPa) (psig)
      HF25 Steam/cold water Indirect heating Secondary-side stoppering/Circulation 0.2 29

      ● Designed to offer highly expandable control. See Features/Applications for details.
      ● Other customizations are also available. Please feel free to inquire.

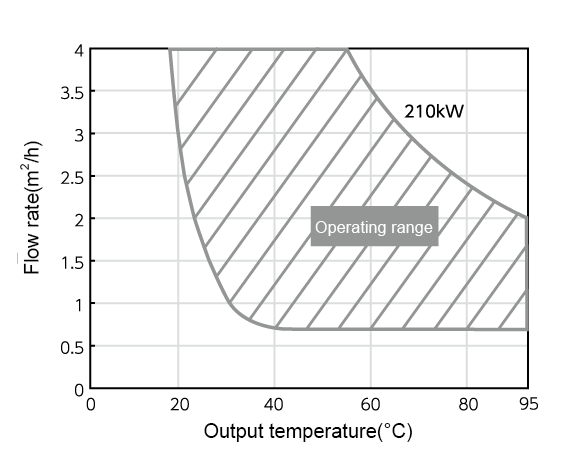

      Hot Water Capacity


      *When water supply temperature is 15℃ (59°F)
      ●Minimum flow rate depends on hot water supply temperature. (0.6m3/h or more)

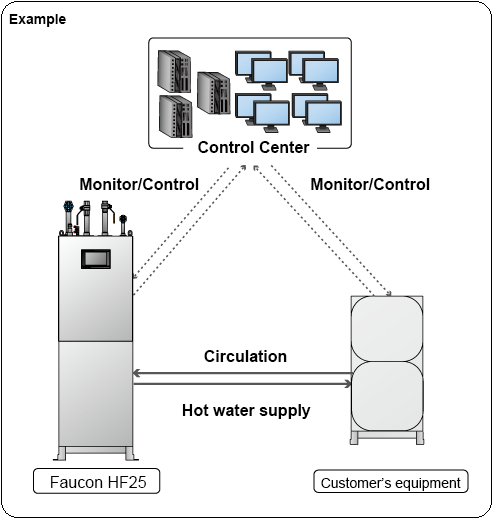

      System Config. Example




      Features

      • Excellent stability

        Uses a patent-pending temperature control system.
        Temperature controlled to within ±3% of the specified temperature.

      • Quick hot water with easy operation.

        Can supply high-temperature hot water at 95℃ (203°F) in as little as 20 seconds*
        Reduces lead-time before operations can start.
        *Time from opening of adjustment valve
        Also features a touch panel to make operations and checking information on the screen quick and easy.
        You can check the current temperature and hot water flow rate and pressure with a single glance.

      • Constant, reliable water quality

        Indirectly heats up cold water using the heat from steam.

        Conforms to the standards of Japan’s Water Supply Act, and has passed leaching tests for water supplied by water heaters. The water it supplies can be used in foodstuff manufacturing.
        It is also suitable for cleaning and sterilization use at 83℃ (181°F) or higher in the foodstuff industry.

      • Low-cost hot water generation

        Uses almost all condensate sensible heat thanks to improved efficiency. This represents a use of energy that is 1.2 times more effective than using only the latent heat in steam, and enables the low-cost generation of hot water. Up to two thirds lower power consumption compared to previous products.

      • Designed to offer highly expandable control*1

        This product can be used flexibly and enables linking with water supply tanks or other existing devices, remote control, and other such usages.

      Other features

      • Statutory inspections not required

        [Low water level protection device] [Overheating prevention program] [Pump overload protection]

        Condensate recovery

        Flexible customization



      • Three safety functions to provide error alerts

        Temperature control to handle rapid drastic changes in hot water supply volume

        Monitoring of water heater status



      Typical applications

      ● Cleaning and sterilization of cooking equipment
      ● Cleaning and cooling processes on manufacturing lines
      ● Foodstuff process preparation and heating
      ● Baths at hotels, etc.



      *1 [Expandability]
      ・ Water heater operation based on external input
        operation actions, set temperature switching, operation frequency, flow rate and pressure changes
      ・ Change in water supply pressure
      ・ Linking with other devices
        A range of customizations other than listed above are possible including


      the installation of a hot water storage tank, operational linking to water heaters in accordance with hot water storage tank status, etc. Please do not hesitate to make inquiries.

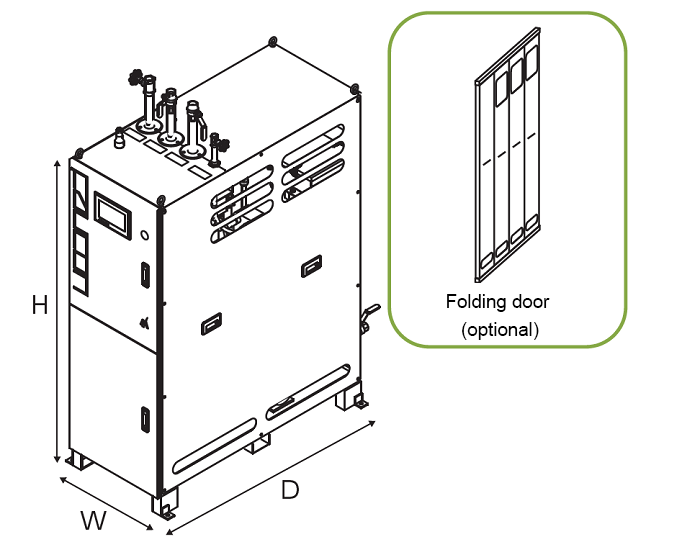

      Dimensions/Weight



      Dimensions (mm)

      Dimensions (in)

      Weight

      Weight during operation
      W H D W H D (kg) (lb) (kg) (lb)

      530

      1600

      1220 20.9 63.0 48.0 280 617.4 340 749.7

      *Please provide at least 800mm (31.5in) of maintenance space around the unit.

      inlet

      Model Connection Size (")

      Water

      inlet

      Steam

      Air

      inlet

      Hot water

      supply

      Return

      hot water

      Hot water

      removed

      Steam

      condensate

      Overflow

      (Water supply tank)

      Overflow

      (Condensate tank)

      HF25 Screwed 1” 1” 1/4” 1” 1/2” 1” 1/2” 1” 3/4”



      Model

      Max. water

      supply

      temperature

      Power

      source

      Electrical

      capacity

      Current

      rating

      Max. heat

      exchange

      capacity

      Operating pressure range

      (MPa)

      Operating pressure range

      (psig)

      (℃) (℉) (V) (kW) (A) (kW) Steam

      Water

      supply

      Air Steam

      Water

      supply

      Air
      HF25 95 203

      AC200

      (3-phase)

      0.9 4 210 0,2 - 0,35
      flow pressure
      0,1 - 0,4
      flow pressure
      0,4 - 0,7
      flow pressure
      29 - 50.8
      flow pressure
      14.5 - 58.0
      flow pressure
      58 - 101.5
      flow pressure



      Model Heating method Hot water supply method Hot water supply pressure
      (MPa) (psig)
      HF25 Steam/cold water Indirect heating Secondary-side stoppering/Circulation 0.2 29

      ● Designed to offer highly expandable control. See Features/Applications for details.
      ● Other customizations are also available. Please feel free to inquire.


      *When water supply temperature is 15℃ (59°F)
      ●Minimum flow rate depends on hot water supply temperature. (0.6m3/h or more)
