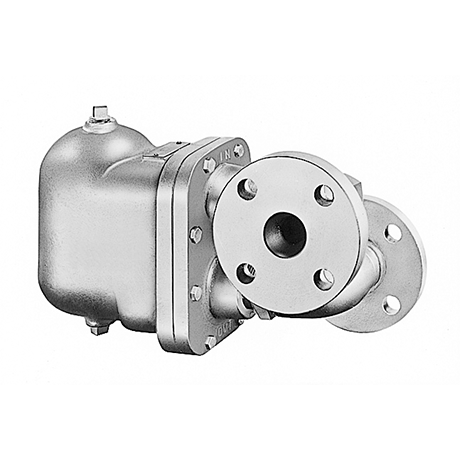

G Series | Ball Float Steam Traps

Steam Traps G Series | Ball Float Steam Traps G2/4/6/8

Steam Traps G Series | Ball Float Steam Traps

G2/4/6/8

  • SCCV System
  • Stainless Steel
  • Supports condensate recovery
  • Horizontal installation
  • Vertical installation
  • Bypass function
  • Auto blow-off
    Steam Traps G Series | Ball Float Steam Traps G2/4/6/8

    Features/Applications

    Features

    • Quick startup

      Automatically discharges initial air and cold condensate. The diaphragm air vent follows the saturation temperature and prevents air and steam locking.

    • Condensate recovery

      With its high degree of back pressure tolerance, this model supports condensate recovery.

    • Easy maintenance

      For quick and easy maintenance, this model can be repaired directly in line.

    • High discharge capacity

      A double ported balance valve provides a large discharge capacity in comparison with single valve models.



    Typical applications

    Suitable for uses including large-scale heat exchangers in various industries, and in things such as industrial plants, foodstuff devices, dyeing/cleaning devices, and air conditioning devices.

    Dimensions/Weight

    Dimensions/Weight

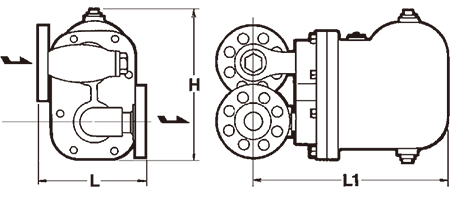

    G2

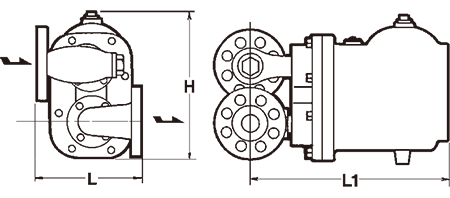

    G4 , G6 , G8






    Model

    Size

    Dimensions (mm) Dimensions (in) Weight
    L L1 H L L1 H kg lb
    G2 1" 175 310 250 6.9 12.2 9.8 21 46.2
    1 1/4" 180 7.1
    1 1/2" ,  2" 190 7.5
    G4 1 1/4"  - 2" 200 380 320 7.9 14.9 12.6 38 83.6
    G6 1 1/2"  - 3" 270 410 350 10.6 16.1 13.8 62 136.4

    G8

    3" , 4" 350 570 480 13.8 22.4 19.9 147 323.4

    *Available flange standards: ASME/JPI 150lb, 300lb,  DIN PN16,  JIS 10K, 16K, 20K

    Specifications

    Model Connections

    Max.Operating

    Pressure

    Max.Operating

    Temperature

    PMO (MPa) PMO (psig) TMO (°C) TMO (°F)
    G2

    Flaned

    ASME, DIN, JIS

    1,6 230 220 428
    G4
    G6
    G8

    *Available flange standards: ASME/JPI 150lb, 300lb,  DIN PN16,  JIS 10K, 16K, 20K

    ●This product uses a double ported balance valve system so if the actual condensate volume is significantly lower than the product’s discharge capacity, there may be a steam leak.

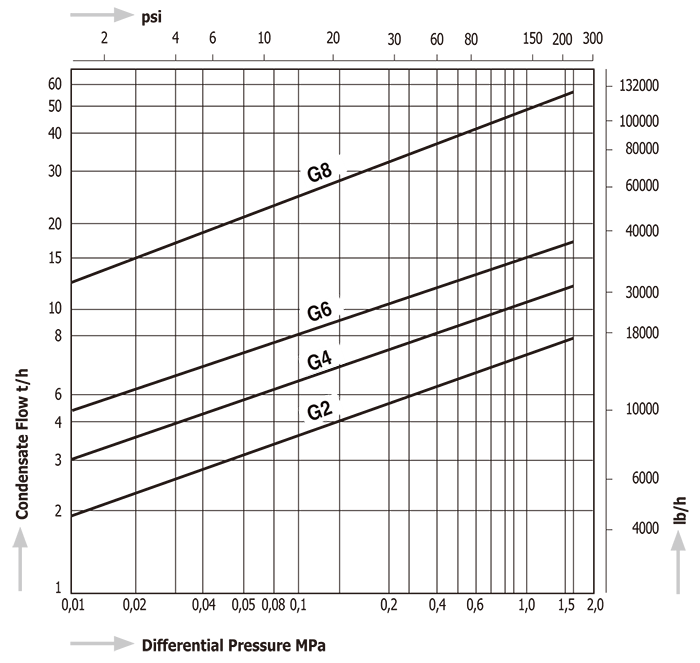

    Discharge Capacity


    ●The discharge line chart shows the discharge rate for condensate with a temperature 6℃ (11℉) lower than the saturation temperature.

    Features

    • Quick startup

      Automatically discharges initial air and cold condensate. The diaphragm air vent follows the saturation temperature and prevents air and steam locking.

    • Condensate recovery

      With its high degree of back pressure tolerance, this model supports condensate recovery.

    • Easy maintenance

      For quick and easy maintenance, this model can be repaired directly in line.

    • High discharge capacity

      A double ported balance valve provides a large discharge capacity in comparison with single valve models.



    Typical applications

    Suitable for uses including large-scale heat exchangers in various industries, and in things such as industrial plants, foodstuff devices, dyeing/cleaning devices, and air conditioning devices.

    Dimensions/Weight

    G2






    G4 , G6 , G8






    Model

    Size

    Dimensions (mm) Dimensions (in) Weight
    L L1 H L L1 H kg lb
    G2 1" 175 310 250 6.9 12.2 9.8 21 46.2
    1 1/4" 180 7.1
    1 1/2" ,  2" 190 7.5
    G4 1 1/4"  - 2" 200 380 320 7.9 14.9 12.6 38 83.6
    G6 1 1/2"  - 3" 270 410 350 10.6 16.1 13.8 62 136.4

    G8

    3" , 4" 350 570 480 13.8 22.4 19.9 147 323.4

    *Available flange standards: ASME/JPI 150lb, 300lb,  DIN PN16,  JIS 10K, 16K, 20K

    Model Connections

    Max.Operating

    Pressure

    Max.Operating

    Temperature

    PMO (MPa) PMO (psig) TMO (°C) TMO (°F)
    G2

    Flaned

    ASME, DIN, JIS

    1,6 230 220 428
    G4
    G6
    G8

    *Available flange standards: ASME/JPI 150lb, 300lb,  DIN PN16,  JIS 10K, 16K, 20K

    ●This product uses a double ported balance valve system so if the actual condensate volume is significantly lower than the product’s discharge capacity, there may be a steam leak.


    ●The discharge line chart shows the discharge rate for condensate with a temperature 6℃ (11℉) lower than the saturation temperature.
