    Steam Traps G Series | Ball Float Steam Traps GC1

    Features/Applications

    Features

    • No condensate logging on primary side (continuous discharge float system with self-adjusting orifice)

      The floating mechanism discharges condensate immediately at saturation temperature, preventing condensate stacking up on the primary side. Ideally installed in applications where condensate logging cannot be accepted.

    • Outstanding sealing performance

      Achieves high sealing performance and reduces steam loss due to a precision polished float. The float is specially manufactured to comply with the maximum requirements for shape precision and surface tolerance. In combination with the specifically lapped valve, MIYAWAKI provides one of the tightest free floating valve designs in the market.

    • Auto blow-off system (built-in bimetal)

      Automatically discharges initial air and cold condensate.

    • Compact design

      The lever free design consists of less components, therefore reduces potentially defective parts and related maintenance and inspection efforts.

    • Stainless steel

      With the exception of the bimetal, all components are made from corrosion-resistance stainless steel providing superb durability even in contact with aggressive additions in steam.

    Typical applications

    Suitable for steam main lines, steam tracing, heat exchangers with small loads and similar applications.

    Dimensions/Weight

    Dimensions/Weight

    Screwed




    Size Dimensions (mm) Dimensions (in) Weight
    L H1 H2 W L H1 H2 W (kg) (lb)
    1/2” 127 15 75 86 5.0 0.6 3.0 3.4 1,8 4.0
    3/4” 136 5.4 1,9 4.2
    1” 140 5.5 2,0 4.4



    Flanged






    Size Dimensions (mm) Dimensions (in) Weight (kg) Weight (lb)
    L H1 H2 W L H1 H2 W ASME/JPI DIN JIS (FF) JIS (RF) ASME/JPI DIN JIS (FF) JIS (RF)
    150lb 300lb PN40 10K,16K 20K 150lb 300lb PN40 10K,16K 20K
    1/2" 175 14 77 86 6.9 0.6 3.0 3.4 2,9 3,3 3,7 3,3 3,5 6.4 7.3 8.1 7.3 7.7
    3/4" 195 7.7 3,5 4,5 4,4 3,8 4,0 7.7 9.9 9.7 8.4 8.8
    1" 215 8.5 4,2 5,3 5,1 5,0 5,3 9.2 11.7 11.2 11.0 11.7

    *Customized face-to-face dimensions on request.
    *Please contact MIYAWAKI for further information.



    Socket Weld





    Size Dimensions (mm) Dimensions (in) Weight
    L H1 H2 W D C h L H1 H2 W D C h (kg) (lb)
    1/2” 127 15 75 86 36 22,2 15 5 0.6 3.0 3.4 1.4 0.9 0.6 1,8 4.0
    3/4” 136 41 27,7 5.4 1.6 1.1 1,9 4.2
    1” 140 50 34,5 5.5 2.0 1.4

    2,0

    4.4

    Specifications

    Model Connection

    Max. operating

    pressure

    Max. operating differential

    pressure

    Max. operating

    temperature

    Body

    material

    Type Size PMO (MPa) PMO (psig) ⊿PMX (MPa) ⊿PMX (psig) TMO (℃) TMO (℉)
    GC1-10

    Screwed

    Rc,NPT

    1/2”

    1,0

    145 1,0 145 350 662

    Stainless cast

    steel

    SCS13A/CF8

    3/4”
    1”
    GC1-16 1/2” 1,6 230 1,6 230
    3/4”
    1”
    GC1-21 1/2” 2,1 305 2,1 305
    3/4”
    1”
    GC1-10F

    Flanged

    FF,RF

    1/2” 1,0 145 1,0 145
    3/4”
    1”
    GC1-16F 1/2” 1,6 230 1,6 230
    3/4”
    1”
    GC1-21F 1/2” 2,1 305 2,1 305
    20
    25
    GC1-10W

    Socket Weld

    SW

    1/2” 1,0 145 1,0 145
    3/4”
    1”
    GC1-16W 1/2” 1,6 230 1,6 230
    3/4”
    1”
    GC1-21W 1/2” 2,1 305 2,1 305
    3/4”
    1”

    ●Maximum allowable pressure (PMA): 2,1MPa (305psig)  PMA is the pressure that can be tolerated by pressure-resistant parts (body).
    ●Maximum allowable temperature (TMA): 350℃ (662℉)  TMA is the temperature that can be tolerated by pressure-resistant parts (body).
    ●Minimum operating differential pressure (⊿PMN): 0,01MPa (1.5psig) ⊿PMN is the minimum operating differential pressure between the trap inlet and outlet.

    *Available flange standards: ASME/JPI, DIN, JIS

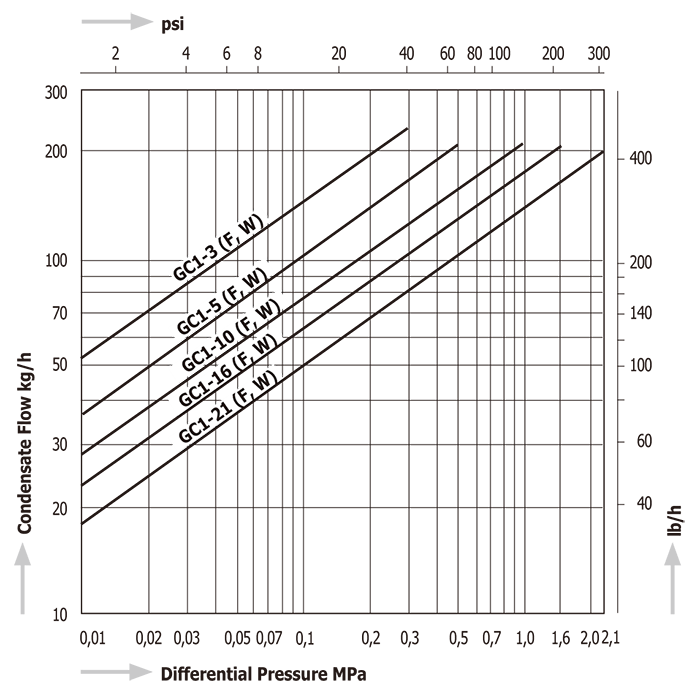

    Discharge Capacity




    Installation Examples

    GC1 Horizontal installation



    GC1V Vertical installation


    Download

    * Membership registration is required to download the documents.

    Features

    • No condensate logging on primary side (continuous discharge float system with self-adjusting orifice)

      The floating mechanism discharges condensate immediately at saturation temperature, preventing condensate stacking up on the primary side. Ideally installed in applications where condensate logging cannot be accepted.

    • Outstanding sealing performance

      Achieves high sealing performance and reduces steam loss due to a precision polished float. The float is specially manufactured to comply with the maximum requirements for shape precision and surface tolerance. In combination with the specifically lapped valve, MIYAWAKI provides one of the tightest free floating valve designs in the market.

    • Auto blow-off system (built-in bimetal)

      Automatically discharges initial air and cold condensate.

    • Compact design

      The lever free design consists of less components, therefore reduces potentially defective parts and related maintenance and inspection efforts.

    • Stainless steel

      With the exception of the bimetal, all components are made from corrosion-resistance stainless steel providing superb durability even in contact with aggressive additions in steam.

    Typical applications

    Suitable for steam main lines, steam tracing, heat exchangers with small loads and similar applications.

    Dimensions/Weight

    Screwed




    Size Dimensions (mm) Dimensions (in) Weight
    L H1 H2 W L H1 H2 W (kg) (lb)
    1/2” 127 15 75 86 5.0 0.6 3.0 3.4 1,8 4.0
    3/4” 136 5.4 1,9 4.2
    1” 140 5.5 2,0 4.4



    Flanged






    Size Dimensions (mm) Dimensions (in) Weight (kg) Weight (lb)
    L H1 H2 W L H1 H2 W ASME/JPI DIN JIS (FF) JIS (RF) ASME/JPI DIN JIS (FF) JIS (RF)
    150lb 300lb PN40 10K,16K 20K 150lb 300lb PN40 10K,16K 20K
    1/2" 175 14 77 86 6.9 0.6 3.0 3.4 2,9 3,3 3,7 3,3 3,5 6.4 7.3 8.1 7.3 7.7
    3/4" 195 7.7 3,5 4,5 4,4 3,8 4,0 7.7 9.9 9.7 8.4 8.8
    1" 215 8.5 4,2 5,3 5,1 5,0 5,3 9.2 11.7 11.2 11.0 11.7

    *Customized face-to-face dimensions on request.
    *Please contact MIYAWAKI for further information.



    Socket Weld





    Size Dimensions (mm) Dimensions (in) Weight
    L H1 H2 W D C h L H1 H2 W D C h (kg) (lb)
    1/2” 127 15 75 86 36 22,2 15 5 0.6 3.0 3.4 1.4 0.9 0.6 1,8 4.0
    3/4” 136 41 27,7 5.4 1.6 1.1 1,9 4.2
    1” 140 50 34,5 5.5 2.0 1.4

    2,0

    4.4
    Model Connection

    Max. operating

    pressure

    Max. operating differential

    pressure

    Max. operating

    temperature

    Body

    material

    Type Size PMO (MPa) PMO (psig) ⊿PMX (MPa) ⊿PMX (psig) TMO (℃) TMO (℉)
    GC1-10

    Screwed

    Rc,NPT

    1/2”

    1,0

    145 1,0 145 350 662

    Stainless cast

    steel

    SCS13A/CF8

    3/4”
    1”
    GC1-16 1/2” 1,6 230 1,6 230
    3/4”
    1”
    GC1-21 1/2” 2,1 305 2,1 305
    3/4”
    1”
    GC1-10F

    Flanged

    FF,RF

    1/2” 1,0 145 1,0 145
    3/4”
    1”
    GC1-16F 1/2” 1,6 230 1,6 230
    3/4”
    1”
    GC1-21F 1/2” 2,1 305 2,1 305
    20
    25
    GC1-10W

    Socket Weld

    SW

    1/2” 1,0 145 1,0 145
    3/4”
    1”
    GC1-16W 1/2” 1,6 230 1,6 230
    3/4”
    1”
    GC1-21W 1/2” 2,1 305 2,1 305
    3/4”
    1”

    ●Maximum allowable pressure (PMA): 2,1MPa (305psig)  PMA is the pressure that can be tolerated by pressure-resistant parts (body).
    ●Maximum allowable temperature (TMA): 350℃ (662℉)  TMA is the temperature that can be tolerated by pressure-resistant parts (body).
    ●Minimum operating differential pressure (⊿PMN): 0,01MPa (1.5psig) ⊿PMN is the minimum operating differential pressure between the trap inlet and outlet.

    *Available flange standards: ASME/JPI, DIN, JIS




    GC1 Horizontal installation



    GC1V Vertical installation
