GC20
Features/Applications
Features
Suitable for steam process lines
The floating mechanism discharges condensate immediately at saturation temperature, preventing condensate stacking up on the primary side. Ideally installed in applications where condensate logging cannot be accepted.
Time shortening to start up
Automatically discharges initial air and cold condensate. The diaphragm air vent follows the saturation temperature and prevents air and steam locking.
Energy saving design
Achieves high sealing performance even in situations with extremely small amounts of condensate and reduces steam loss thanks to a precision polished float and three point support mechanism.
Condensate recovery
With its high degree of back pressure tolerance, this model supports condensate recovery.
Typical applications
Suitable for use in foodstuff devices, cleaning devices, air conditioning devices, and other such applications.
Dimentions/Weight
Dimensions/Weight
Screwed
| Size | Dimensions (mm) | Dimensions (in) | Gewicht | |||||||
| L | H1 | H2 | W | L | H1 | H2 | W | (kg) | (lb) | |
| 1/2” | 120 | 21 | 113 | 86 | 4.7 | 0.8 | 4.4 | 3.4 | 2,4 | 5.3 |
| 3/4” | ||||||||||
| 1” | 2,5 | 5.5 | ||||||||
Flanged
| Size | Dimensions (mm) | Dimensions (in) | Weight (kg) | Weight (lb) | ||||||||||||
| L | H1 | H2 | W | L | H1 | H2 | W | JIS(FF) | JIS(RF) | ASME/JPI(RF) | JIS(FF) | JIS(RF) | ASME/JPI(RF) | |||
| 10K,16K | 20K | 150lb | 300lb | 10K,16K | 20K | 150lb | 300lb | |||||||||
| 1/2” | 175 | 21 | 113 | 86 | 6.9 | 0.8 | 4.4 | 3.4 | 3,8 | 3,9 | 3,4 | 3,8 | 8.4 | 8.6 | 7.5 | 8.4 |
| 3/4” | 195 | 7.7 | 4,2 | 4,3 | 3,9 | 5,0 | 9.3 | 9.5 | 8.6 | 11.0 | ||||||
| 1” | 215 | 8.5 | 5,3 | 5,4 | 4,6 | 5,8 | 11.7 | 11.9 | 10.1 | 12.8 | ||||||
| Size | Dimensions (m) | Dimensions (in) | Weight (kg) | Weight(lb) | ||||||
| L | H1 | H2 | W | L | H1 | H2 | W | |||
| DN15 | 150 | 21 | 113 | 86 | 5.9 | 0.8 | 4.4 | 3.4 | 3,4 | 7.5 |
| DN20 | 3,9 | 8.6 | ||||||||
| DN25 | 160 | 6.3 | 4,6 | 10.1 | ||||||
*Customized face-to-face dimensions on request.
*Please contact MIYAWAKI for further information.
Specifications
| Modell | Connection |
Max. operating pressure |
Max. operating differential pressure |
Max. operating temperature |
Body material | ||||
| Type | Size | PMO (MPa) | PMO (psig) | ⊿PMX (MPa) | ⊿PMX (psig) | TMO (℃) | TMO (℉) | ||
| GC20-3 | Screwed Rc,NPT |
1/2” |
0,3 |
43 | 0,3 | 43 | 220 | 428 |
Stainless cast steel SCS13A/CF8 |
| 3/4” | |||||||||
| 1” | |||||||||
| GC20-8 | 1/2” | 0,8 | 116 | 0,8 | 116 | ||||
| 3/4” | |||||||||
| 1” | |||||||||
| GC20-21 | 1/2” | 2,1 | 305 | 2,1 | 305 | ||||
| 3/4” | |||||||||
| 1” | |||||||||
| GC20-3F |
Flanged FF,RF |
1/2” | 0,3 | 43 | 0,3 | 43 | |||
| 3/4” | |||||||||
| 1” | |||||||||
| GC20-8F | 1/2” | 0,8 | 116 | 0,8 | 116 | ||||
| 3/4” | |||||||||
| 1” | |||||||||
| GC20-21F | 1/2” | 2,1 | 305 | 2,1 | 305 | ||||
| 3/4” | |||||||||
| 1” | |||||||||
*Available flange standards: ASME/JPI, DIN, JIS
●Maximum allowable pressure (PMA): 2,1MPa (305psig) PMA is the pressure that can be tolerated by pressure-resistant parts (body).
●Maximum allowable temperature (TMA): 220℃ (428℉) TMA is the temperature that can be tolerated by pressure-resistant parts (body).
●Maximum operating back pressure (PMOB): 90% of inlet-side pressure

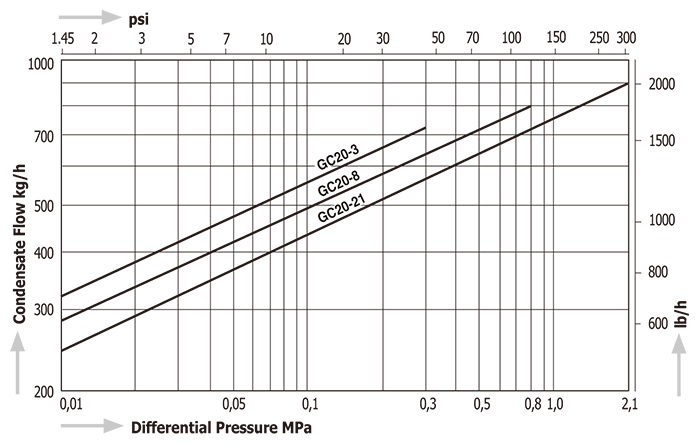

Discharge Capacity
●The discharge line chart shows the discharge rate for condensate with a temperature 6℃ (11℉) lower than the saturation temperature.
Download
* Membership registration is required to download the documents.
