G Series | Ball Float Steam Traps

GTH10

  • Max. Operating Pressure
  • 15,0MPa
  • Max. Operating Temperature
  • 550℃
  • Max. Discharge Capacity
  • 850kg/h

G30

  • Max. Operating Pressure
  • 2,1MPa
  • Max. Operating Temperature
  • 235℃
  • Max. Discharge Capacity
  • 1,5t/h

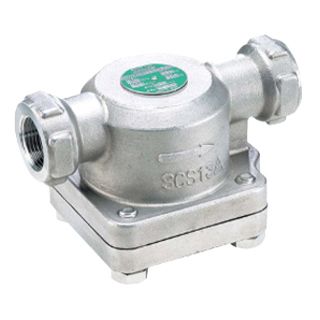

Stainless Steel GC1

GC1

  • Max. Operating Pressure
  • 2,1MPa
  • Max. Operating Temperature
  • 350℃
  • Max. Discharge Capacity
  • 211kg/h
Stainless Steel GC1V

GC1V

  • Max. Operating Pressure
  • 2,1MPa
  • Max. Operating Temperature
  • 350℃
  • Max. Discharge Capacity
  • 211kg/h

G20N

  • Max. Operating Pressure
  • 2,1MPa
  • Max. Operating Temperature
  • 220℃
  • Max. Discharge Capacity
  • 910kg/h

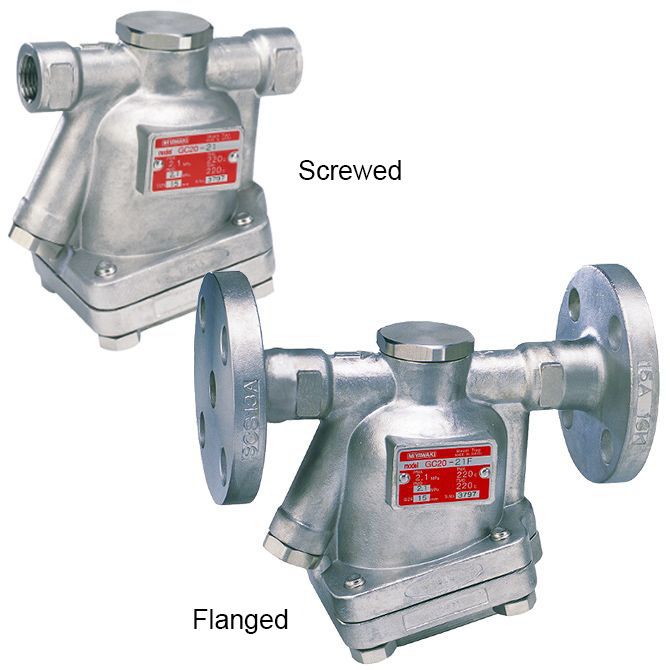

Stainless Steel GC20

GC20

  • Max. Operating Pressure
  • 2,1MPa
  • Max. Operating Temperature
  • 220℃
  • Max. Discharge Capacity
  • 910kg/h

G11N

  • Max. Operating Pressure
  • 1,6MPa
  • Max. Operating Temperature
  • 220℃
  • Max. Discharge Capacity
  • 710kg/h

G12N

  • Max. Operating Pressure
  • 1,6MPa
  • Max. Operating Temperature
  • 220℃
  • Max. Discharge Capacity
  • 1,2t/h

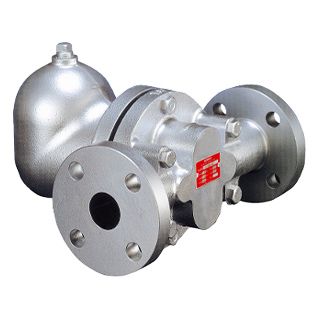

G15N

  • Max. Operating Pressure
  • 1,0MPa
  • Max. Operating Temperature
  • 220℃
  • Max. Discharge Capacity
  • 7t/h

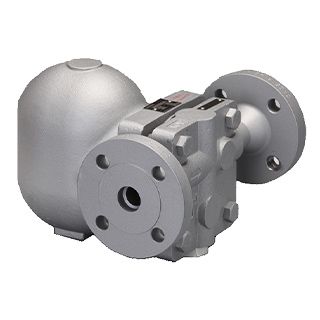

GTH12

  • Max. Operating Pressure
  • 4,5MPa
  • Max. Operating Temperature
  • 425℃
  • Max. Discharge Capacity
  • 1,5t/h

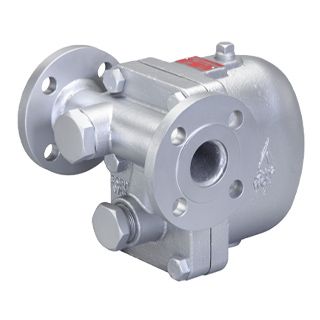

GH40

  • Max. Operating Pressure
  • 3,2MPa
  • Max. Operating Temperature
  • 400℃
  • Max. Discharge Capacity
  • 4,6t/h

GH40D

  • Max. Operating Pressure
  • 2,1MPa
  • Max. Operating Temperature
  • 220℃
  • Max. Discharge Capacity
  • 4,6t/h

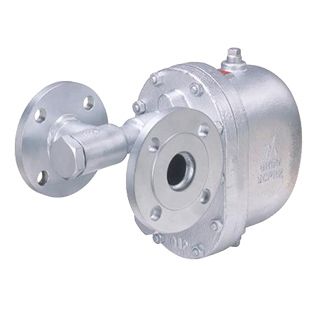

GH50

  • Max. Operating Pressure
  • 3,2MPa
  • Max. Operating Temperature
  • 400℃
  • Max. Discharge Capacity
  • 6,2t/h

GH50D

  • Max. Operating Pressure
  • 2,1MPa
  • Max. Operating Temperature
  • 220℃
  • Max. Discharge Capacity
  • 6,2t/h

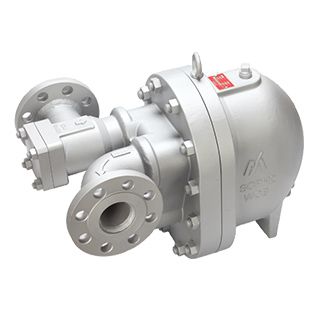

GH60

  • Max. Operating Pressure
  • 2,1MPa
  • Max. Operating Temperature
  • 400℃
  • Max. Discharge Capacity
  • 12t/h

GH60D

  • Max. Operating Pressure
  • 2,1MPa
  • Max. Operating Temperature
  • 220℃
  • Max. Discharge Capacity
  • 12t/h

GH70

  • Max. Operating Pressure
  • 2,1MPa
  • Max. Operating Temperature
  • 400℃
  • Max. Discharge Capacity
  • 55t/h

GH70D

  • Max. Operating Pressure
  • 2,1MPa
  • Max. Operating Temperature
  • 220℃
  • Max. Discharge Capacity
  • 55t/h

G3N

  • Max. Operating Pressure
  • 1,6MPa
  • Max. Operating Temperature
  • 235℃
  • Max. Discharge Capacity
  • 10t/h

GH3N

  • Max. Operating Pressure
  • 2,1MPa
  • Max. Operating Temperature
  • 400℃
  • Max. Discharge Capacity
  • 10t/h

G5

  • Max. Operating Pressure
  • 1,6MPa
  • Max. Operating Temperature
  • 235℃
  • Max. Discharge Capacity
  • 18t/h

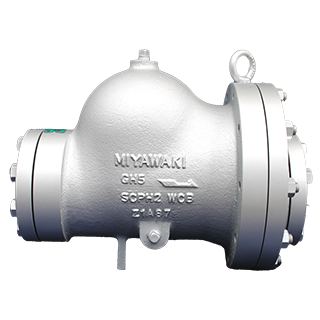

GH5

  • Max. Operating Pressure
  • 2,1MPa
  • Max. Operating Temperature
  • 400℃
  • Max. Discharge Capacity
  • 18t/h

G2/4/6/8

  • Max. Operating Pressure
  • 1,6MPa
  • Max. Operating Temperature
  • 220℃
  • Max. Discharge Capacity
  • 56,5t/h

GH2/4/6/8

  • Max. Operating Pressure
  • 2,0MPa
  • Max. Operating Temperature
  • 400℃
  • Max. Discharge Capacity
  • 60t/h
