Steam Traps

S Series | Thermodynamic Disc Steam Traps

SV-N

SV-N

  • Max. Operating Pressure
  • 1,6MPa
  • Max. Operating Temperature
  • 220℃
  • Max. Discharge Capacity
  • 920kg/h
SV1

SV1

  • Max. Operating Pressure
  • 1,6MPa
  • Max. Operating Temperature
  • 220℃
  • Max. Discharge Capacity
  • 310kg/h
S31N

S31N

  • Max. Operating Pressure
  • 1,6MPa
  • Max. Operating Temperature
  • 220℃
  • Max. Discharge Capacity
  • *15A～25A：593kg/h
    *32A～50A：2,290kg/h
SC-310　SC-311

SC-310　SC-311

  • Max. Operating Pressure
  • 1,6MPa
  • Max. Operating Temperature
  • 220℃
  • Max. Discharge Capacity
  • 1,7t/h

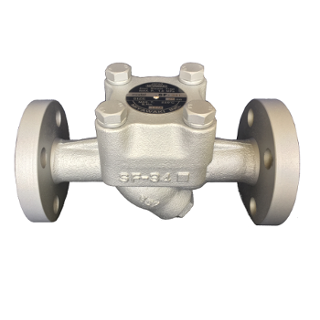

SF-340　SF-341

SF-340　SF-341

  • Max. Operating Pressure
  • 1,6MPa
  • Max. Operating Temperature
  • 220℃
  • Max. Discharge Capacity
  • 1,7t/h
Stainless Steel SC31

SC31

  • Max. Operating Pressure
  • 2,1MPa
  • Max. Operating Temperature
  • 220℃
  • Max. Discharge Capacity
  • 675kg/h

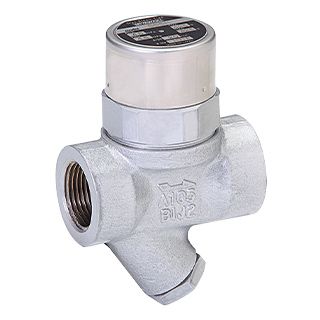

S55N

S55N

  • Max. Operating Pressure
  • 4,6MPa
  • Max. Operating Temperature
  • 425℃
  • Max. Discharge Capacity
  • 570kg/h

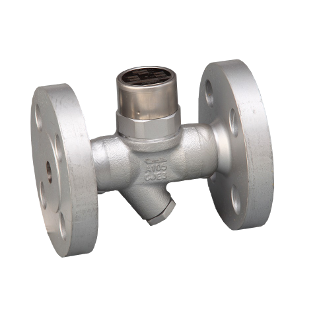

S55H

S55H

  • Max. Operating Pressure
  • 4,6MPa
  • Max. Operating Temperature
  • 425℃
  • Max. Discharge Capacity
  • 330kg/h
Stainless Steel SU2N

SU2N

  • Max. Operating Pressure
  • 4,6MPa
  • Max. Operating Temperature
  • 425℃
  • Max. Discharge Capacity
  • 800kg/h

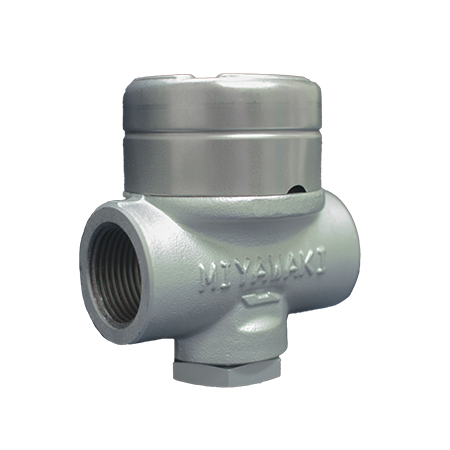

Stainless Steel SU2H

SU2H

  • Max. Operating Pressure
  • 6,4MPa
  • Max. Operating Temperature
  • 425℃
  • Max. Discharge Capacity
  • 390kg/h
S61N

S61N

  • Max. Operating Pressure
  • 6,5MPa
  • Max. Operating Temperature
  • 425℃
  • Max. Discharge Capacity
  • 630kg/h
S62N

S62N

  • Max. Operating Pressure
  • 6,5MPa
  • Max. Operating Temperature
  • 475℃
  • Max. Discharge Capacity
  • 630kg/h

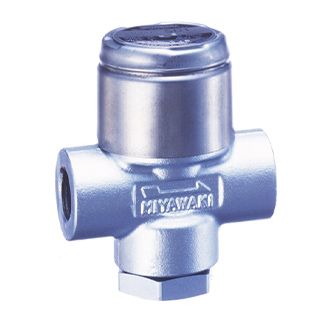

Stainless Steel SD1

SD1

  • Max. Operating Pressure
  • 3,1MPa
  • Max. Operating Temperature
  • 400℃
  • Max. Discharge Capacity
  • 430kg/h
Stainless Steel SL3

SL3

  • Max. Operating Pressure
  • 1,0MPa
  • Max. Operating Temperature
  • 400℃
  • Max. Discharge Capacity
  • 44kg/h
