Series S | Thermodynamic Disc Steam Traps

Steam Traps Series S  | Thermodynamic Disc Steam Traps SD1

Steam Traps Series S | Thermodynamic Disc Steam Traps

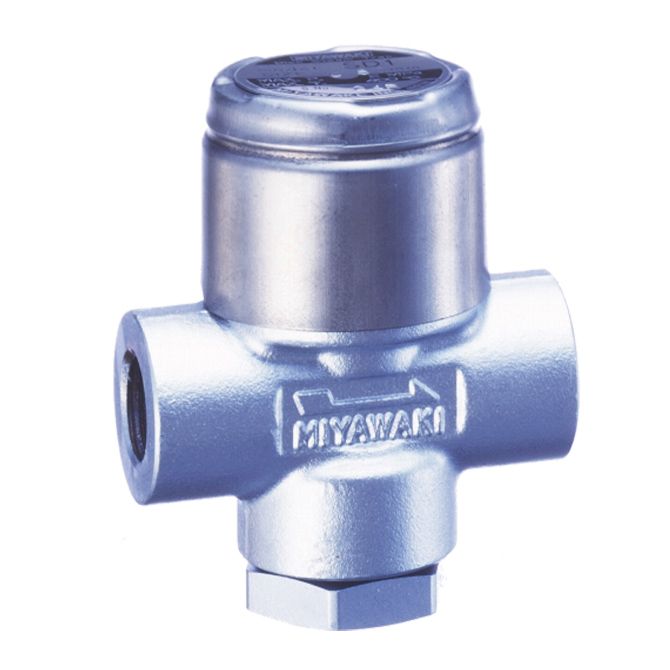

SD1

  • SCCV System
  • Stainless Steel
  • Supports condensate recovery
  • Horizontal installation
  • Vertical installation
  • Bypass function
  • Automatic air venting

    Models that handle steam locking also available

    Steam Traps Series S  | Thermodynamic Disc Steam Traps SD1

    Features/Applications

    Features

    • Compact and cost effective design

      It has a space saving, simple mechanism with very few moving components.

    • Easy maintenance

      The minimum amount of moving parts and easy in-line access ensure easy and fast maintenance.

    • Special design against steam locking

      To avoid cases of steam locking, Miyawaki offers special models to handle steam locking.

    • Flexible installation

      This product can be installed either horizontally or vertically.

    • Superb durability

      It is equipped with an additional cover to improve thermal efficiency and reduce cycling frequency, enhancing durability.

    Typical applications

    Suitable for steam tracing, instrumentation steam tracing, steam irons, and other such applications.

    Dimensions/Weight

    Dimensions/Weight




    Size Dimensions (mm) Dimensions (in) Weight
    L H1 H2 W L H1 H2 W (kg) (lb)
    1/4” 52 39 25 34 2.0 1.5 1.0 1.3 0,3 0.7
    3/8”
    1/2” 60 41 23 2.4 1.6 0.9

    Specifications

    Model Connection

    Max. operating

    pressure

    Max. operating

    pressure differential

    Max. operating

    temperature

    Body

    material

    Type Size (MPa) (psig) (MPa) (psig) (℃) (℉)
    SD1

    Screwed

    Rc,NPT

    1/4” 3.1 450 3.1 450 400 752

    Stainless steel

    SUS420J2

    3/8”
    1/2”

    *Special design models against steam locking are available.
     Models: SD1-G, SD1-2

    Discharge Capacity


    Download

    * Membership registration is required to download the documents.
