S Series | Thermodynamic Disc Steam Traps

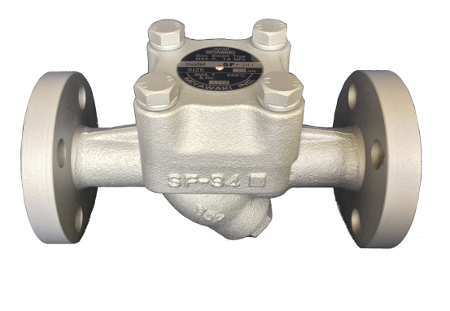

Steam Traps S Series | Thermodynamic Disc Steam Traps SF-340 SF-341

Steam Traps S Series | Thermodynamic Disc Steam Traps

SF-340 SF-341

  • SCCV System
  • Stainless Steel
  • Supports condensate recovery
  • Horizontal installation
  • Vertical installation
  • Bypass function
  • Auto blow-off

    Models that handle steam locking also available

    Steam Traps S Series | Thermodynamic Disc Steam Traps SF-340 SF-341

    Features/Applications

    Features

    • Larger discharge capacity

      It is larger discharge capacity among other S series steam traps.

    • Easy maintenance

      The minimum of moving parts and an easy in-line access ensures easy and fast maintenance.

    • Special design against steam locking

      To avoid cases of steam locking, Miyawaki offers special models to handle steam locking.

    • Flexible installation

      This product can be installed either horizontally or vertically.

    Typical applications

    Suitable for a wide range of applications.

    Dimensions/Weight

    Dimensions/Weight




    Model Size Dimensions (mm) Dimensions (in) Weight
    L H1 H2 W L H1 H2 W (kg) (lb)
    SF-340 3/4” 240 89 81 96 9.45 3.5 3.19 3.78 10,0 22.05
    SF-341 1”

    Specifications

    Model Connection

    Max. operating

    pressure

    Max. operating

    pressure differential

    Max. operating

    temperature

    Body

    material

    Type Size (MPa) (psig) (MPa) (psig) (℃) (℉)
    SF-340

    Flanged

    FF,RF*

    3/4” 1,6 232 1,6 232 220 428

    Cast iron

    FC250

    SF-341 1”

    *Available flange standards: ASME/JPI 150lb, 300lb, DIN PN16, JIS 10K, 16K, 20K

    *Special design models against steam locking are available.

    Models SF-340-2 / SF-341-2




    Discharge Capacity


    Download

    * Membership registration is required to download the documents.

    Features

    • Larger discharge capacity

      It is larger discharge capacity among other S series steam traps.

    • Easy maintenance

      The minimum of moving parts and an easy in-line access ensures easy and fast maintenance.

    • Special design against steam locking

      To avoid cases of steam locking, Miyawaki offers special models to handle steam locking.

    • Flexible installation

      This product can be installed either horizontally or vertically.

    Typical applications

    Suitable for a wide range of applications.

    Dimensions/Weight




    Model Size Dimensions (mm) Dimensions (in) Weight
    L H1 H2 W L H1 H2 W (kg) (lb)
    SF-340 3/4” 240 89 81 96 9.45 3.5 3.19 3.78 10,0 22.05
    SF-341 1”
    Model Connection

    Max. operating

    pressure

    Max. operating

    pressure differential

    Max. operating

    temperature

    Body

    material

    Type Size (MPa) (psig) (MPa) (psig) (℃) (℉)
    SF-340

    Flanged

    FF,RF*

    3/4” 1,6 232 1,6 232 220 428

    Cast iron

    FC250

    SF-341 1”

    *Available flange standards: ASME/JPI 150lb, 300lb, DIN PN16, JIS 10K, 16K, 20K

    *Special design models against steam locking are available.

    Models SF-340-2 / SF-341-2
