G Series | Ball Float Steam Traps

Steam Traps G Series | Ball Float Steam Traps G5

Steam Traps G Series | Ball Float Steam Traps

G5

  • SCCV System
  • Stainless Steel
  • Supports condensate recovery
  • Horizontal installation
  • Vertical installation
  • Bypass function
  • Auto blow-off
    • Option
      - Customized flange face-to-face
    Steam Traps G Series | Ball Float Steam Traps G5

    Features/Applications

    Features

    • Quick startup

      Automatically discharges initial air and cold condensate. The diaphragm air vent follows the saturation temperature and prevents air and steam locking.

    • Condensate recovery

      With its high degree of back pressure tolerance, this model supports condensate recovery.

    • High discharge capacity

      A double ported balance valve provides a large discharge capacity in comparison with single valve models.



    Typical applications

    Suitable for uses including large-scale heat exchangers in various industries, and in things such as industrial plants, foodstuff devices, dyeing/cleaning devices, and air conditioning devices.

    Dimensions/Weight

    Dimensions/Weight

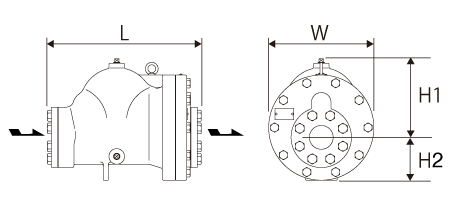

    Flanged




    Size Dimensions (mm) Dimensions (in) Weight
    L H1 H2 W L H1 H2 W (kg) (lb)
    2” 340 205 110 270 13.4 8.1 4.3 10.6 45,0 99.2

    *Available flange standards: JIS 16K

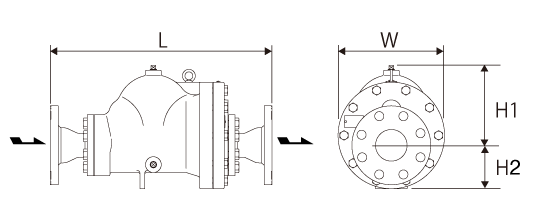

    With connection flange




    Size

    Flange standards

    Dimensions (mm)

    Dimensions (in)

    Weight

    L H1 H2 W L H1 H2 W (kg) (lb)
    2” JIS
    10K,16K,20K
    540 205 110 270 21.3 8.1 4.3 10.6 52,0 114.7
    ASME/JPI
    150lb,300lb
    54,0 119.1
    DIN PN40 (DN50)
    2 1/2” JIS
    10K,16K,20K
    560 22.1 54,0 119.1
    ASME/JPI
    150lb,300lb
    570 22.4 57,0 125.7
    DIN PN40 (DN65)
    3" JIS
    10K,16K,20K
    560 22.1 56,0 123.5

    ASME/JPI
    150lb,300lb

    570 22.4 60,0 132.3
    DIN PN40 (DN80)
    4"

    JIS
    10K,16K,20K

    580 22.8 59,0 130.1
    ASME/JPI
    150lb,300lb
    600 23.6 69,0 152.2

    DIN PN40 (DN100)

    *Available flange standards: ASME/JPI 150lb, 300lb,  DIN PN16,  JIS 10K, 16K, 20K
    *Customized face-to-face dimensions on request.
    *Please contact MIYAWAKI for further information.

    Specifications

    Model Connection

    Max. operating

    pressure

    Max. operating differential

    pressure

    Max. operating

    temperature

    Body

    material

    Type Size PMO (MPa) PMO (psig) ⊿PMX (MPa) ⊿PMX (psig) TMO (℃) TMO (℉)
    G5-10

    Flanged

    FF*1

    2” 1,0 145 1,0 145 235 455

    Ductile cast iron
    FCD450

    G5-16 1,6 230 1,6 230
    G5-10R

    Flanged

    FF,RF*2

    2”・2 1/2”・3"・4" 1,0 145 1,0 145
    G5-16R 2”・2 1/2”・3"・4" 1,6 230 1,6 230

    *1 Available flange standards: JIS 16K
    *2 Available flange standards: ASME/JPI 150lb, 300lb, DIN PN16, JIS 10K, 16K, 20K

    ●This product uses a double ported balance valve system so if the actual condensate volume is significantly lower than the product’s discharge capacity, there may be a steam leak.



    Discharge Capacity



    ●The discharge line chart shows the discharge rate for condensate with a temperature 6℃ (11℉) lower than the saturation temperature.

    Features

    • Quick startup

      Automatically discharges initial air and cold condensate. The diaphragm air vent follows the saturation temperature and prevents air and steam locking.

    • Condensate recovery

      With its high degree of back pressure tolerance, this model supports condensate recovery.

    • High discharge capacity

      A double ported balance valve provides a large discharge capacity in comparison with single valve models.



    Typical applications

    Suitable for uses including large-scale heat exchangers in various industries, and in things such as industrial plants, foodstuff devices, dyeing/cleaning devices, and air conditioning devices.

    Dimensions/Weight



    Flanged




    Size Dimensions (mm) Dimensions (in) Weight
    L H1 H2 W L H1 H2 W (kg) (lb)
    2” 340 205 110 270 13.4 8.1 4.3 10.6 45,0 99.2

    *Available flange standards: JIS 16K





    With connection flange




    Size

    Flange standards

    Dimensions (mm)

    Dimensions (in)

    Weight

    L H1 H2 W L H1 H2 W (kg) (lb)
    2” JIS
    10K,16K,20K
    540 205 110 270 21.3 8.1 4.3 10.6 52,0 114.7
    ASME/JPI
    150lb,300lb
    54,0 119.1
    DIN PN40 (DN50)
    2 1/2” JIS
    10K,16K,20K
    560 22.1 54,0 119.1
    ASME/JPI
    150lb,300lb
    570 22.4 57,0 125.7
    DIN PN40 (DN65)
    3" JIS
    10K,16K,20K
    560 22.1 56,0 123.5

    ASME/JPI
    150lb,300lb

    570 22.4 60,0 132.3
    DIN PN40 (DN80)
    4"

    JIS
    10K,16K,20K

    580 22.8 59,0 130.1
    ASME/JPI
    150lb,300lb
    600 23.6 69,0 152.2

    DIN PN40 (DN100)

    *Available flange standards: ASME/JPI 150lb, 300lb,  DIN PN16,  JIS 10K, 16K, 20K
    *Customized face-to-face dimensions on request.
    *Please contact MIYAWAKI for further information.

    Model Connection

    Max. operating

    pressure

    Max. operating differential

    pressure

    Max. operating

    temperature

    Body

    material

    Type Size PMO (MPa) PMO (psig) ⊿PMX (MPa) ⊿PMX (psig) TMO (℃) TMO (℉)
    G5-10

    Flanged

    FF*1

    2” 1,0 145 1,0 145 235 455

    Ductile cast iron
    FCD450

    G5-16 1,6 230 1,6 230
    G5-10R

    Flanged

    FF,RF*2

    2”・2 1/2”・3"・4" 1,0 145 1,0 145
    G5-16R 2”・2 1/2”・3"・4" 1,6 230 1,6 230

    *1 Available flange standards: JIS 16K
    *2 Available flange standards: ASME/JPI 150lb, 300lb, DIN PN16, JIS 10K, 16K, 20K

    ●This product uses a double ported balance valve system so if the actual condensate volume is significantly lower than the product’s discharge capacity, there may be a steam leak.





    ●The discharge line chart shows the discharge rate for condensate with a temperature 6℃ (11℉) lower than the saturation temperature.
