Ball Float Traps

Air Traps Ball Float Traps AGH12

Air Traps Ball Float Traps

AGH12

  • SCCV System
  • Stainless Steel
  • Supports condensate recovery
  • Horizontal installation
  • Vertical installation
  • Bypass function
  • Auto blow-off
    • Option
      - Customized flange face-to-face
      - ASTM available

    Can be used for gas pipings

    Air Traps Ball Float Traps AGH12

    Features/Applications

    Features

    • Superb sealing and durability

      Offers superb sealing and durability thanks to the MIYAWAKI SCCV System. This valve mechanism was developed by MIYAWAKI to increase valve durability and ensure maximum sealing performance.

    • Easy maintenance

      All units are attached to the cover, making maintenance easy.


    *’SCCV System’ is an abbreviation of Self Closing and Centering Valve System.



    Typical applications

    Suitable for air pipings, aftercoolers, receiver tanks, gas pipimgs, and other such applications.

    Dimensions/Weight

    Dimensions/Weight

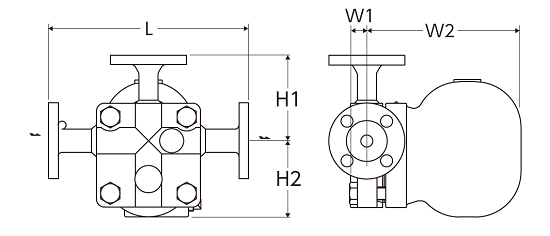

    Flanged




    Size Dimensions (mm) Dimensions (in)

    Weight

    L H1 H2 W1 W2 L H1 H2 W1 W2 (kg) (lb)
    1/2”

    250

    107 95 20 195 9.8 4.2 3.7 0.8 7.7 15,8 34.8
    3/4” 16,0 35.2
    1” 17,0 37.4

    *Available flange standards: ASME/JPI, DIN, JIS
    *Customized face-to-face dimensions on request.
    *Please contact MIYAWAKI for further information.

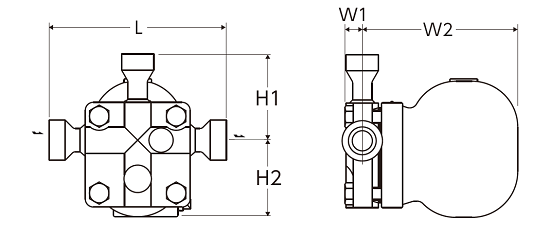

    Socket Weld




    Size Dimensions (mm) Dimensions (in)

    Weight

    L H1 H2 W1 W2 L H1 H2 W1 W2 (kg) (lb)
    1/2” 220 107 95 20 195 8.7 4.2 3.7 0.8 7.7 12,0 26.4
    3/4” 12,1 26.6
    1” 12,2 26.8



    Specifications

    Model Connection

    Max.

    operating pressure

    Max.

    operating pressure differential

    Max.

    operating temperature

    Body

    material

    Type Size PMO(MPa) PMO(psig) ⊿PMX(MPa) ⊿PMX(psig) TMO(℃) TMO(℉)
    AGH12-45F

    Flanged

    FF,RF*

    1/2” 4,5 652 4,5 652

    425

    797

    Cast steel

    SCPH2

    3/4”
    1”
    AGH12-45W

    Socket Weld

    SW

    1/2”
    3/4”
    1”

    *Available flange standards: ASME/JPI, DIN, JIS
    *Customized size 1-1/4”, 1-1/2”, and 2” on request.
    *ASTM material (WCB) and Stainless Steel (SCS13A) on request.

    *Please contact MIYAWAKI for further information.

    Discharge Capacity


    Download

    * Membership registration is required to download the documents.

    Features

    • Superb sealing and durability

      Offers superb sealing and durability thanks to the MIYAWAKI SCCV System. This valve mechanism was developed by MIYAWAKI to increase valve durability and ensure maximum sealing performance.

    • Easy maintenance

      All units are attached to the cover, making maintenance easy.


    *’SCCV System’ is an abbreviation of Self Closing and Centering Valve System.



    Typical applications

    Suitable for air pipings, aftercoolers, receiver tanks, gas pipimgs, and other such applications.

    Dimensions/Weight

    Flanged




    Size Dimensions (mm) Dimensions (in)

    Weight

    L H1 H2 W1 W2 L H1 H2 W1 W2 (kg) (lb)
    1/2”

    250

    107 95 20 195 9.8 4.2 3.7 0.8 7.7 15,8 34.8
    3/4” 16,0 35.2
    1” 17,0 37.4

    *Available flange standards: ASME/JPI, DIN, JIS
    *Customized face-to-face dimensions on request.
    *Please contact MIYAWAKI for further information.



    Socket Weld




    Size Dimensions (mm) Dimensions (in)

    Weight

    L H1 H2 W1 W2 L H1 H2 W1 W2 (kg) (lb)
    1/2” 220 107 95 20 195 8.7 4.2 3.7 0.8 7.7 12,0 26.4
    3/4” 12,1 26.6
    1” 12,2 26.8



    Model Connection

    Max.

    operating pressure

    Max.

    operating pressure differential

    Max.

    operating temperature

    Body

    material

    Type Size PMO(MPa) PMO(psig) ⊿PMX(MPa) ⊿PMX(psig) TMO(℃) TMO(℉)
    AGH12-45F

    Flanged

    FF,RF*

    1/2” 4,5 652 4,5 652

    425

    797

    Cast steel

    SCPH2

    3/4”
    1”
    AGH12-45W

    Socket Weld

    SW

    1/2”
    3/4”
    1”

    *Available flange standards: ASME/JPI, DIN, JIS
    *Customized size 1-1/4”, 1-1/2”, and 2” on request.
    *ASTM material (WCB) and Stainless Steel (SCS13A) on request.

    *Please contact MIYAWAKI for further information.


    * Membership registration is required to download the documents.
