Air Vents for Steam

Air Vents Air Vents for Steam AT9N

Air Vents Air Vents for Steam

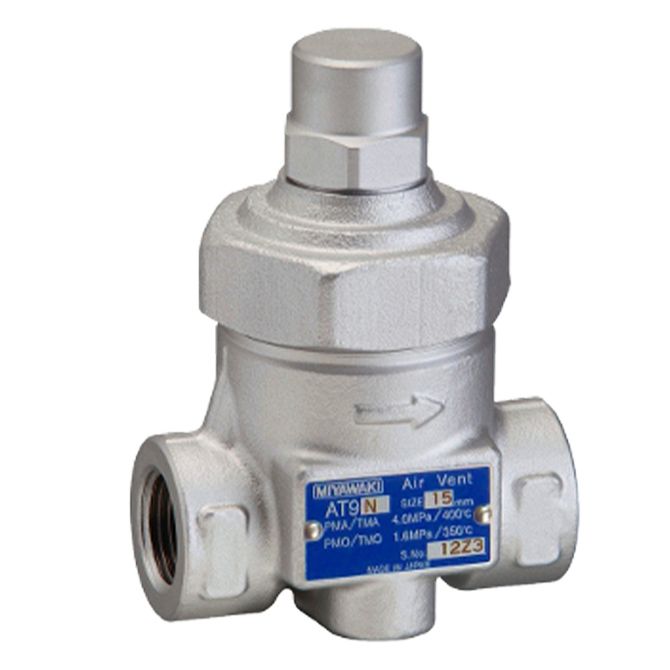

AT9N

      • Option
        - Customized flange face-to-face
      Air Vents Air Vents for Steam AT9N

      Features/Applications

      Features

      • Swift air removal

        Shortened time to full operation of the device.

      Typical applications

      Suitable for steam lines and various steam equipments.

      Dimensions/Weight

      Dimensions/Weight

      Screwed / Socket Weld



      Size Dimensions (mm) Dimensions (in) Weight
      L H1 H2 W L H1 H2 W (kg) (lb)
      1/2” 70 82 18 56 2.8 23 0.7 2.2 0,9 2.0
      3/4” 80 19 3.2 0.8 1,0 2.2
      1” 23 0.9 1,1 2.4



      Flanged


      JIS,ASME
      Size Dimensions (mm) Dimensions (in) WeightWeight(kg) Weight(in)
      JIS(FF,RF) ASME/JPI(RF) JIS(FF,RF)JISJIS(FF,RF) AME/JPI(RF)
      L H1 H2 W L H1 H2 W 10K,16K 20K 150lb 300lb 10K,16K 20K 150lb 300lb
      1/2” 145 82 18 56 5.7 3.2 0.7 2.2 2,4 2,5 2.0 2.5 5.3 5.5 4.4 5.5
      3/4” 19 0.8 2,8 2,9 2.5 3.4 6.2 6.4 5.5 7.5
      1” 23 0.9 3,9 4,1 3.2 4.2 8.6 9.0 7.1 9.3



      PN40

      Size Dimensions(mm) Dimensions (in)

      Weight

      (kg)

      Weight

      (lb)

      L H1 H2 W L H1 H2 W
      DN15 150 82 18 56 5.9 3.2 0.7 2.2 2,6 5.7
      DN20 3,4 7.5
      DN25 160 6.3 4,0 8.8



      *Manufacturing with custom face-to-face dimensions for flanged connection is also possible.
      *Please do not hesitate to inquire about the face-to-face dimensions that can be manufactured.

      Specifications

      Model Connection

      Max. operating

      pressure

      Max. operating

      pressure differential

      Max. operating

      temperature

      Body

      material

      Type Size (MPa) (psig) (MPa) (psig) (℃) (℉)
      AT9N

      Screwed

      Rc,NPT

      1/2” 1,6 232 1,6 232 350 662

      Forged steel

      A105



      3/4”
      1”
      AT9NF

      Flanged

      FF,RF

      1/2”
      3/4”
      1”
      AT9NW

      Socket Weld

      SW

      1/2”
      3/4”
      1”

      Features

      • Swift air removal

        Shortened time to full operation of the device.

      Typical applications

      Suitable for steam lines and various steam equipments.

      Dimensions/Weight

      Screwed / Socket Weld



      Size Dimensions (mm) Dimensions (in) Weight
      L H1 H2 W L H1 H2 W (kg) (lb)
      1/2” 70 82 18 56 2.8 23 0.7 2.2 0,9 2.0
      3/4” 80 19 3.2 0.8 1,0 2.2
      1” 23 0.9 1,1 2.4



      Flanged


      JIS,ASME
      Size Dimensions (mm) Dimensions (in) WeightWeight(kg) Weight(in)
      JIS(FF,RF) ASME/JPI(RF) JIS(FF,RF)JISJIS(FF,RF) AME/JPI(RF)
      L H1 H2 W L H1 H2 W 10K,16K 20K 150lb 300lb 10K,16K 20K 150lb 300lb
      1/2” 145 82 18 56 5.7 3.2 0.7 2.2 2,4 2,5 2.0 2.5 5.3 5.5 4.4 5.5
      3/4” 19 0.8 2,8 2,9 2.5 3.4 6.2 6.4 5.5 7.5
      1” 23 0.9 3,9 4,1 3.2 4.2 8.6 9.0 7.1 9.3



      PN40

      Size Dimensions(mm) Dimensions (in)

      Weight

      (kg)

      Weight

      (lb)

      L H1 H2 W L H1 H2 W
      DN15 150 82 18 56 5.9 3.2 0.7 2.2 2,6 5.7
      DN20 3,4 7.5
      DN25 160 6.3 4,0 8.8



      *Manufacturing with custom face-to-face dimensions for flanged connection is also possible.
      *Please do not hesitate to inquire about the face-to-face dimensions that can be manufactured.

      Model Connection

      Max. operating

      pressure

      Max. operating

      pressure differential

      Max. operating

      temperature

      Body

      material

      Type Size (MPa) (psig) (MPa) (psig) (℃) (℉)
      AT9N

      Screwed

      Rc,NPT

      1/2” 1,6 232 1,6 232 350 662

      Forged steel

      A105



      3/4”
      1”
      AT9NF

      Flanged

      FF,RF

      1/2”
      3/4”
      1”
      AT9NW

      Socket Weld

      SW

      1/2”
      3/4”
      1”
