Ancillary Equipment Check Valves CVC3

Ancillary Equipment Check Valves

CVC3

  • SCCV System
  • Stainless Steel
  • Supports condensate recovery
  • Horizontal installation
  • Vertical installation
  • Bypass function
  • Auto blow-off

    For steam/hot water/water

    Ancillary Equipment Check Valves CVC3

    Features/Applications

    Features

    • Metal seal type

    • Flexible installation

      This product can be installed either horizontally or vertically.

    • Superb durability

      Most of the product is made from stainless steel, making it durable and corrosion-resistant.

    Typical applications

    Suitable fot steam and water (condensate) lines

    Dimensions/Weight

    Dimensions/Weight




    Size Dimensions (mm) Dimensions (in) Weight
    L W B L W B (kg) (lb)
    1/2” 48 35 27 1.9 1.4 1.1 0,2 0.4
    3/4” 61 43 33 2.4 1.7 1.3 0,3 0.7

    1”

    73 54 41 2.9 2.1 1.6 0,6 1.3
    1 1/4” 80,5 62 50 3.2 2.4 2.0 0,8 1.8
    1 1/2” 87 75 58 3.4 3.0 2.3 1,2 2.7
    2” 100 90 72 3.9 3.5 2.8 1,8 4.0

    Specifications

    Model Connection

    Max. operating

    pressure

    Max. operating

    pressure differential

    Opening

    pressure

    Max. operating

    temperature

    Medium

    Body

    material

    Type Size

    PMO

    (MPa)

    PMO

    (psig)

    (MPa) (psig) (MPa) (psig) (℃) (℉)
    CVC3

    Screwed

    Rc,NPT

    1/2” 2,1 305 2,1 305 0,003  0.44  220 428

    Steam/

    water/

    hot water

    Stainless cast

    steel

    SCS13A

    3/4”

    1”

    1 1/4”
    1 1/2”
    2”

    ● Maximum allowable pressure (PMA): 2,1MPa (305psig)  PMA is the pressure that can be tolerated by pressure-resistant parts (body).
    ● Maximum allowable temperature (TMA): 220℃ (428℉)  TMA is the temperature that can be tolerated by pressure-resistant parts (body).

    Pressure loss

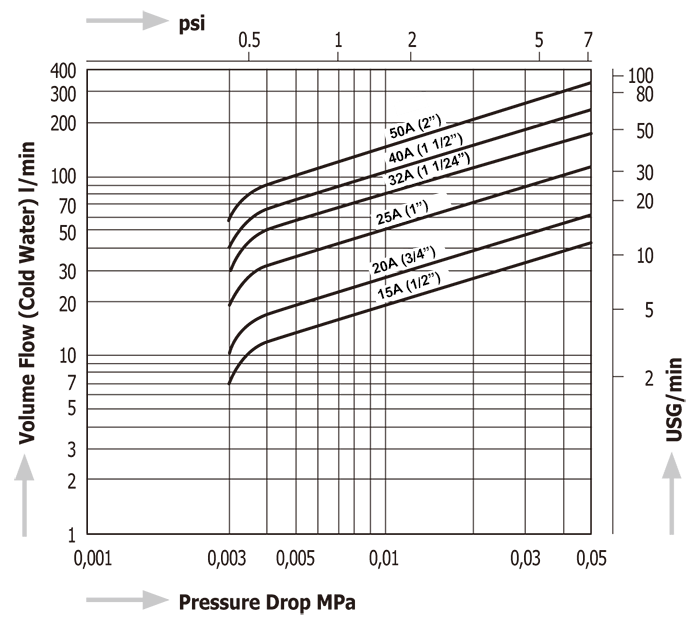

    ● The lines on this pressure loss chart are the minimum guaranteed values.

    Download

    * Membership registration is required to download the documents.

    Features

    • Metal seal type

    • Flexible installation

      This product can be installed either horizontally or vertically.

    • Superb durability

      Most of the product is made from stainless steel, making it durable and corrosion-resistant.

    Typical applications

    Suitable fot steam and water (condensate) lines

    Dimensions/Weight




    Size Dimensions (mm) Dimensions (in) Weight
    L W B L W B (kg) (lb)
    1/2” 48 35 27 1.9 1.4 1.1 0,2 0.4
    3/4” 61 43 33 2.4 1.7 1.3 0,3 0.7

    1”

    73 54 41 2.9 2.1 1.6 0,6 1.3
    1 1/4” 80,5 62 50 3.2 2.4 2.0 0,8 1.8
    1 1/2” 87 75 58 3.4 3.0 2.3 1,2 2.7
    2” 100 90 72 3.9 3.5 2.8 1,8 4.0
    Model Connection

    Max. operating

    pressure

    Max. operating

    pressure differential

    Opening

    pressure

    Max. operating

    temperature

    Medium

    Body

    material

    Type Size

    PMO

    (MPa)

    PMO

    (psig)

    (MPa) (psig) (MPa) (psig) (℃) (℉)
    CVC3

    Screwed

    Rc,NPT

    1/2” 2,1 305 2,1 305 0,003  0.44  220 428

    Steam/

    water/

    hot water

    Stainless cast

    steel

    SCS13A

    3/4”

    1”

    1 1/4”
    1 1/2”
    2”

    ● Maximum allowable pressure (PMA): 2,1MPa (305psig)  PMA is the pressure that can be tolerated by pressure-resistant parts (body).
    ● Maximum allowable temperature (TMA): 220℃ (428℉)  TMA is the temperature that can be tolerated by pressure-resistant parts (body).


    ● The lines on this pressure loss chart are the minimum guaranteed values.

    * Membership registration is required to download the documents.
