Vacuum Breakers

Ancillary Equipment Vacuum Breakers CVU15

Ancillary Equipment Vacuum Breakers

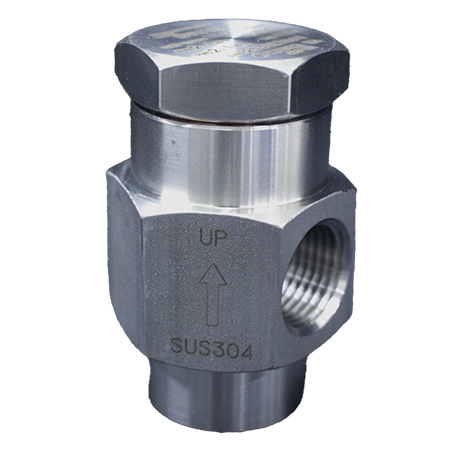

CVU15

  • SCCV System
  • Stainless Steel
  • Supports condensate recovery
  • Horizontal installation
  • Vertical installation
  • Bypass function
  • Auto blow-off
    Ancillary Equipment Vacuum Breakers CVU15

    Features/Applications

    Features

    • Superb durability

      The body of the product is made from stainless steel, making it durable and corrosion-resistant.

    • Compact and cost effective design

      It has a space saving, simple mechanism with very few moving components.
      It is only vertical installation.

    • Wide range of use pressure and temperature

      Max. operating pressure is 2,1MPa (305psig) and max. operating temperature is 450℃ (842°F).

    The CVU15 vacuum breaker is an automatic valve that takes in air from outside into a steam system and  breaks occurred vacuums.



    Typical applications

    Suitable for steam devices, steam lines, and liquid devices such as boiler tanks.

    Dimensions/Weight

    Dimensions/Weight




    Size Dimensions (mm) Dimensions (in) Weight
    H W W1 H W W1 (kg) (lb)

    1/2”×1/8”

    55 41 36 1.3 2.2 1.4 0,55 1.2
    1/2”×1/2” 70 2.8

    Specifications

    Model Connection

    Max. operating pressure

    Max. operating pressure

    Max. operating temperature

    Body material
    Type Size PMO(MPa) PMO(psig) (MPa) (psig) TMO(℃) TMO(℉)
    CVU15

    Screwed

    PT

    NPS1/2”×NPS1/2”

    2,1

    304.5 2,1 304.5 450 842

    Stainless steel

    AISI304*

    ●Maximum allowable pressure (PMA): 2,1MPa (305psig)PMA is the pressure that can be tolerated by pressure-resistant parts (body) .
    ●Maximum allowable temperature (TMA): 450℃ (842℉)TMA is the temperature that can be tolerated by pressure-resistant parts (body).
    ●Differential pressure of at least 0,5kPa (0.07psig) is required to open the valve.

    *The DN15 screw standard enables connection with the JIS 15A screw standard.
    *AISI: American Iron and Steel Institute

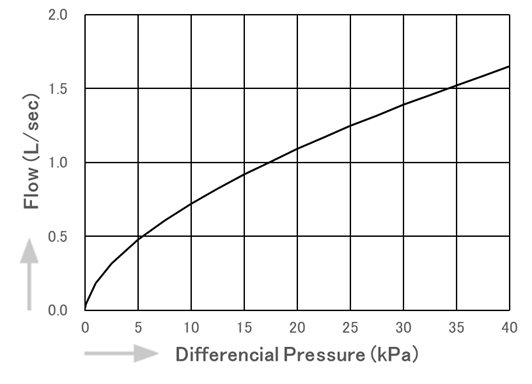

    Air Intake Rate


    ●ℓ/sec: Air flow rate per second (1 liter = 1000cc)

    Installation Examples


    Operating Principles

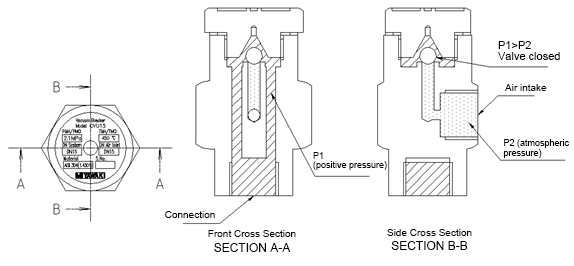

    ■ Normal state
    In a normal state, pressure P1 inside the line is applied to the connection, and the pressure P2 of the air intake is atmospheric pressure.
    P1 is higher than P2 (P1>P2), and the valve is closed by this differential pressure.


    ■Operating state
    If the pressure in the line becomes negative, the pressure P1 at the connection becomes lower than the pressure P2 at the air intake (P1<P2).
    The valve is opened by this differential pressure.
    The valve is closed when the air flows in the line and the pressure in the line is increased. It will return back to Nomal state.


    Features

    • Superb durability

      The body of the product is made from stainless steel, making it durable and corrosion-resistant.

    • Compact and cost effective design

      It has a space saving, simple mechanism with very few moving components.
      It is only vertical installation.

    • Wide range of use pressure and temperature

      Max. operating pressure is 2,1MPa (305psig) and max. operating temperature is 450℃ (842°F).

    The CVU15 vacuum breaker is an automatic valve that takes in air from outside into a steam system and  breaks occurred vacuums.



    Typical applications

    Suitable for steam devices, steam lines, and liquid devices such as boiler tanks.

    Dimensions/Weight




    Size Dimensions (mm) Dimensions (in) Weight
    H W W1 H W W1 (kg) (lb)

    1/2”×1/8”

    55 41 36 1.3 2.2 1.4 0,55 1.2
    1/2”×1/2” 70 2.8
    Model Connection

    Max. operating pressure

    Max. operating pressure

    Max. operating temperature

    Body material
    Type Size PMO(MPa) PMO(psig) (MPa) (psig) TMO(℃) TMO(℉)
    CVU15

    Screwed

    PT

    NPS1/2”×NPS1/2”

    2,1

    304.5 2,1 304.5 450 842

    Stainless steel

    AISI304*

    ●Maximum allowable pressure (PMA): 2,1MPa (305psig)PMA is the pressure that can be tolerated by pressure-resistant parts (body) .
    ●Maximum allowable temperature (TMA): 450℃ (842℉)TMA is the temperature that can be tolerated by pressure-resistant parts (body).
    ●Differential pressure of at least 0,5kPa (0.07psig) is required to open the valve.

    *The DN15 screw standard enables connection with the JIS 15A screw standard.
    *AISI: American Iron and Steel Institute


    ●ℓ/sec: Air flow rate per second (1 liter = 1000cc)


    ■ Normal state
    In a normal state, pressure P1 inside the line is applied to the connection, and the pressure P2 of the air intake is atmospheric pressure.
    P1 is higher than P2 (P1>P2), and the valve is closed by this differential pressure.


    ■Operating state
    If the pressure in the line becomes negative, the pressure P1 at the connection becomes lower than the pressure P2 at the air intake (P1<P2).
    The valve is opened by this differential pressure.
    The valve is closed when the air flows in the line and the pressure in the line is increased. It will return back to Nomal state.
