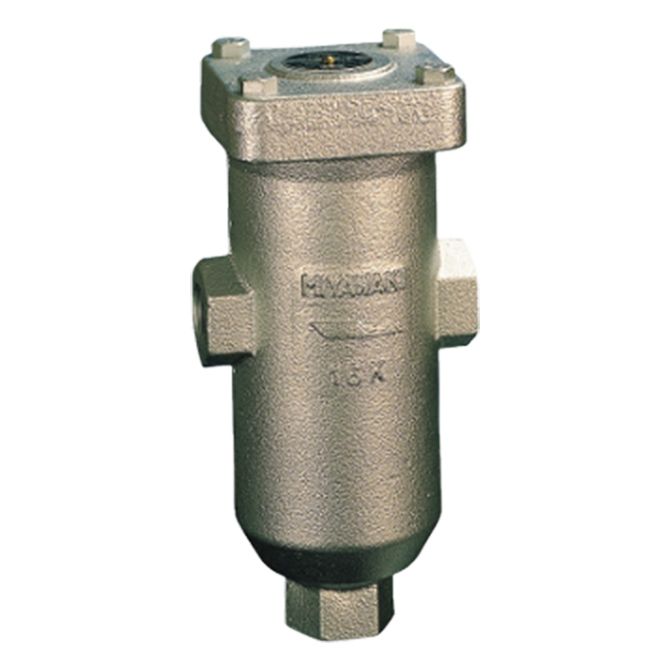

Ancillary Equipment Separators H3 | Baffle Type

Ancillary Equipment Separators

H3 | Baffle Type

  • SCCV System
  • Stainless Steel
  • Supports condensate recovery
  • Horizontal installation
  • Vertical installation
  • Bypass function
  • Auto blow-off

    For steam/air

    Ancillary Equipment Separators H3 | Baffle Type

    Features/Applications

    Features

    • Effectively separates condensate from steam and air in lines to provide good quality steam and air

    • Supply dry steam and air

      Separates and removes water drops generated in steam and air lines as well as condensate that runs along their bottoms.

    • Uses baffles (collision type)

      Steam-Water separation efficiency is not down if load fluctuates.

    • Compact design

    • Very low pressure loss

      Pressure loss is only 0.002MPa (0.29psig)

    Typical applications

    Perfect for separating air/steam and water in steam lines and air lines.

    Dimensions/Weight

    Dimensions/Weight

    Size Dimensions (mm) Dimensions (in) Weight
    L H1 H2 W d0 L H1 H2 W d0 (kg) (lb)
    1/2” 100 93 120 86 Rc1/2" 3.9 3.7 4.7 3.4 Rc1/2" 3,6 7.9
    3/4” 130 120 158 108 5.1 4.7 6.2 4.3 6,4 14.1
    1” 160 130 180 128 6.3 5.1 7.1 5.0 9,4 20.7

    Specifications

    Model Connection

    Max. operating

    pressure

    Max. operating

    pressure differential

    Max. operating

    temperature

    Body

    material

    Type Size (MPa) (psig) (MPa) (psig) TMO(℃) TMO(℉)
    H3

    Screwed

    Rc,NPT

    1/2” 1,6 232 1,6 232 220 428

    Ductile cast iron

    FCD450

    3/4”
    1”

    Installation Examples


    Features

    • Effectively separates condensate from steam and air in lines to provide good quality steam and air

    • Supply dry steam and air

      Separates and removes water drops generated in steam and air lines as well as condensate that runs along their bottoms.

    • Uses baffles (collision type)

      Steam-Water separation efficiency is not down if load fluctuates.

    • Compact design

    • Very low pressure loss

      Pressure loss is only 0.002MPa (0.29psig)

    Typical applications

    Perfect for separating air/steam and water in steam lines and air lines.

    Dimensions/Weight

    Size Dimensions (mm) Dimensions (in) Weight
    L H1 H2 W d0 L H1 H2 W d0 (kg) (lb)
    1/2” 100 93 120 86 Rc1/2" 3.9 3.7 4.7 3.4 Rc1/2" 3,6 7.9
    3/4” 130 120 158 108 5.1 4.7 6.2 4.3 6,4 14.1
    1” 160 130 180 128 6.3 5.1 7.1 5.0 9,4 20.7
    Model Connection

    Max. operating

    pressure

    Max. operating

    pressure differential

    Max. operating

    temperature

    Body

    material

    Type Size (MPa) (psig) (MPa) (psig) TMO(℃) TMO(℉)
    H3

    Screwed

    Rc,NPT

    1/2” 1,6 232 1,6 232 220 428

    Ductile cast iron

    FCD450

    3/4”
    1”
