Ancillary Equipment Separators H5 | Cyclone Type

Ancillary Equipment Separators

H5 | Cyclone Type

  • SCCV System
  • Stainless Steel
  • Supports condensate recovery
  • Horizontal installation
  • Vertical installation
  • Bypass function
  • Auto blow-off

    For steam/air

    Ancillary Equipment Separators H5 | Cyclone Type

    Features/Applications

    Features

    • Supply dry steam and air

      Separates and removes water drops generated in steam and air lines as well as condensate that runs along their bottoms. Effectively separates condensate from steam and air in lines to provide good quality steam and air.

    • Cyclone type (centrifugal separation)

      Steam-Water separation efficiency remains constant even if load fluctuates.

    • Compact design

    • Very low pressure loss

    Typical applications

    Perfect for separating air/steam and water in steam lines and air lines.

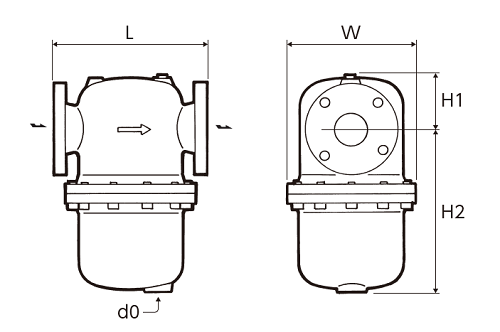

    Dimensions/Weight

    Dimensions/Weight

    Screwed



    Size Dimensions (mm) Dimensions (in) Weight
    L H1 H2 W d0 L H1 H2 W d0 (kg) (lb)
    1/2” 150 50 193 146 Rc3/4" 5.9 2.0 7.6 5.7 Rc3/4" 7,1 15.6
    3/4”
    1” 7,3 16.1
    1 1/4” 190 69 213 175 Rc1" 7.5 2.7 8.4 6.9 Rc1" 12,5 27.6
    1 1/2”
    2” 219 82 260 199 8.6 3.2 10.2 7.8 20,5 45.2



    Flanged



    Size

    Flange standards

    Dimensions (mm)

    Dimensions (in)

    Weight

    L H1 H2 W d0 L H1 H2 W d0 (kg) (lb)
    2 1/2”

    JIS(FF)

    10K 288 104 314 248 Rc1" 11.3 4.1 12.4 9.8 Rc 1" 40,0 88.2
    20K 292 11.5
    3" JIS(FF) 10K 335 123 361 283 Rc1-1/4" 13.2 4.8 14.2 11.1 Rc1 1/4" 54,0 119.1
    20K 343 13.5 56,0 123.5
    4”

    JIS(FF)

    10K 390 149 445 341 15.4 5.9 17.5 13.4 96,0 211.6
    20K 402 15.8 100,0 220.5

    Specifications

    Model Connection

    Max. operating

    pressure

    Max. operating

    pressure differential

    Max. operating

    temperature

    Body

    material

    Type Size (MPa) (psig) (MPa) (psig) TMO(℃) TMO(℉)
    H5

    Screwed

    Rc

    1/2” 2,0 290 2,0 290 220 428

    Ductile cast iron
    FCD450

    3/4”
    1”
    1 1/4”
    1 1/2”
    2”
    H5-F

    Flanged

    JIS FF*

    2 1/2”
    3"
    4”

    *Can potentially meet these flange standards: JIS 10K, 20K

    Installation Examples


    Features

    • Supply dry steam and air

      Separates and removes water drops generated in steam and air lines as well as condensate that runs along their bottoms. Effectively separates condensate from steam and air in lines to provide good quality steam and air.

    • Cyclone type (centrifugal separation)

      Steam-Water separation efficiency remains constant even if load fluctuates.

    • Compact design

    • Very low pressure loss

    Typical applications

    Perfect for separating air/steam and water in steam lines and air lines.

    Dimensions/Weight

    Screwed



    Size Dimensions (mm) Dimensions (in) Weight
    L H1 H2 W d0 L H1 H2 W d0 (kg) (lb)
    1/2” 150 50 193 146 Rc3/4" 5.9 2.0 7.6 5.7 Rc3/4" 7,1 15.6
    3/4”
    1” 7,3 16.1
    1 1/4” 190 69 213 175 Rc1" 7.5 2.7 8.4 6.9 Rc1" 12,5 27.6
    1 1/2”
    2” 219 82 260 199 8.6 3.2 10.2 7.8 20,5 45.2



    Flanged



    Size

    Flange standards

    Dimensions (mm)

    Dimensions (in)

    Weight

    L H1 H2 W d0 L H1 H2 W d0 (kg) (lb)
    2 1/2”

    JIS(FF)

    10K 288 104 314 248 Rc1" 11.3 4.1 12.4 9.8 Rc 1" 40,0 88.2
    20K 292 11.5
    3" JIS(FF) 10K 335 123 361 283 Rc1-1/4" 13.2 4.8 14.2 11.1 Rc1 1/4" 54,0 119.1
    20K 343 13.5 56,0 123.5
    4”

    JIS(FF)

    10K 390 149 445 341 15.4 5.9 17.5 13.4 96,0 211.6
    20K 402 15.8 100,0 220.5
    Model Connection

    Max. operating

    pressure

    Max. operating

    pressure differential

    Max. operating

    temperature

    Body

    material

    Type Size (MPa) (psig) (MPa) (psig) TMO(℃) TMO(℉)
    H5

    Screwed

    Rc

    1/2” 2,0 290 2,0 290 220 428

    Ductile cast iron
    FCD450

    3/4”
    1”
    1 1/4”
    1 1/2”
    2”
    H5-F

    Flanged

    JIS FF*

    2 1/2”
    3"
    4”

    *Can potentially meet these flange standards: JIS 10K, 20K
