Steam Fired Instantaneous Water Heater | Circulation Method

Hot Water Supply System Steam Fired Instantaneous Water Heater | Circulation Method HE-12RH

Hot Water Supply System Steam Fired Instantaneous Water Heater | Circulation Method

HE-12RH

      ・Hot water supply up to 95℃ (203°F)

      Hot Water Supply System Steam Fired Instantaneous Water Heater | Circulation Method HE-12RH

      Features/Applications

      Features

      • Hot water supply up to 95℃ (203°F)

        Suitable for cleaning and sterilization by using at 83℃ (181°F) or higher in the f&b industry.

      • Large quantities of hot water supply stably

        Supplies hot water at a constant output pressure and temperature.

      • Water heater with no need for statutory inspections

        No required regular inspections, reporting to government agencies, and operational qualifications which is need for the storage tank and pressure vessel.

      • Clean hot water

        Supply clean hot water thanks to applying in-direct heating method.

      • Quiet operation

        Few noise from the mixing of steam and cold water, and no noise pollution where it is installed.

      Typical applications

      The HE series includes a variety of types, such as those with special specifications (stainless steel, etc.), and capacities that range from high to medium.
      Models in this series can be used in a wide range of fields, including general industrial settings and health and hygiene.
      *Please do not hesitate to make inquiries regarding special specifications.

      ● Cleaning and sterilization of kitchen equipment
       Can be used for high-temperature cleaning and sterilization of kitchen equipment.
      ● Cleaning for factories
       Highly effective when used in cleaning for industrial facilities.
      ● Bath
       High-capacity capability means it can be used in large-scale bathing facilities.

      Dimensions/Weight

      Dimensions/Weight


      ① Water
      ② Steam
      ③ Hot water
      ④ Return Hot water



      Dimensions (mm) Dimensions (in) Weight Weight during operation
      W H D1 D2 W H D1 D2 (kg) (lb) (kg) (lb)
      800 1500 1200 250 31.5 59.1 47.2 9.8 530 1168.7 710 1565.6



      Specifications

      Model Connection
      Size

      Water

      inlet

      Steam

      inlet

      Hot water

      supply

      Return hot

      water

      Hot water

      removed

      Steam

      condensate

      Overflow

      Heating

      method

      Hot water

      supply method

      HE-12RH-5

      Flanged

      FF*

      2”

      2”

      2” 1/2”

      1”

      3/4”

      2”

      Steam/

      cold water

      Indirect heating

      Secondary-side

      stoppering/Circulation

      HE-12RH-6
      Model

      Hot water

      temperature

      Rated heat

      output

      kW

      (kcal/h)

      Power

      source

      (V)

      Frequency

      (Hz)

      Electrical

      capacity

      (kW)

      Current

      rating

      (A)

      Operating

      pressure range

      (MPa)

      Operating

      pressure range

      (psig)

      Hot water

      supply pressure

      (℃) (℉) Steam

      Cold

      water

      Steam

      Cold

      water

      (MPa) (psig)
      HE-12RH-5 30 - 95 86 - 203

      838

      (720,000)

      AC200

      (3-phase)

      50 2.8 11.3

      0,2 - 0,35

      (flow pressure)

      0,1 - 0,4

      (flow pressure)

      29 - 50.8

      (flow pressure)

      14.5 - 58

      (flow pressure)

      0,2
      (During max. supply)
      29
      (During max. supply)
      HE-12RH-6 60 2.7 9.9

      *Can potentially meet these flange standards: JIS 10K
      ● Please note that the interior of the body is not waterproof or dustproof.
      ● Standard equipment
      ・Safety devices: Low water level protection device, overheating prevention device, pump overload protection device
      ・Wetted part material:Stainless Steel and Bronze
      ・Indoor use
      ・Internal tank
      ● Other customizations are also possible. Please feel free to inquire.

      ・Wetted part material: All Stainless Steel (Passed leaching performance test)
      ・Suitable for outdoor use
      ・Supports external tank use
      ・Remote operation, timer-based automatic operation, etc.
      *Custom manufacturing with user-specified materials, water supply volume, and other specifications is possible.

      Hot Water Capacity

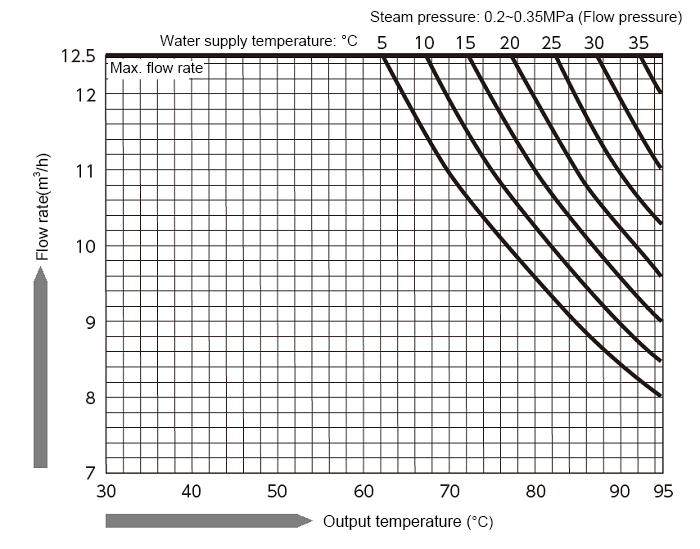

      Flow Rate / Output Temperature Diagram (by Temperature)




      Installation Examples

      Circulation System


      Typical applications

      The HE series includes a variety of types, such as those with special specifications (stainless steel, etc.), and capacities that range from high to medium.
      Models in this series can be used in a wide range of fields, including general industrial settings and health and hygiene.
      *Please do not hesitate to make inquiries regarding special specifications.

      ● Cleaning and sterilization of kitchen equipment
       Can be used for high-temperature cleaning and sterilization of kitchen equipment.
      ● Cleaning for factories
       Highly effective when used in cleaning for industrial facilities.
      ● Bath
       High-capacity capability means it can be used in large-scale bathing facilities.

      Dimensions/Weight


      ① Water
      ② Steam
      ③ Hot water
      ④ Return Hot water



      Dimensions (mm) Dimensions (in) Weight Weight during operation
      W H D1 D2 W H D1 D2 (kg) (lb) (kg) (lb)
      800 1500 1200 250 31.5 59.1 47.2 9.8 530 1168.7 710 1565.6



      Model Connection
      Size

      Water

      inlet

      Steam

      inlet

      Hot water

      supply

      Return hot

      water

      Hot water

      removed

      Steam

      condensate

      Overflow

      Heating

      method

      Hot water

      supply method

      HE-12RH-5

      Flanged

      FF*

      2”

      2”

      2” 1/2”

      1”

      3/4”

      2”

      Steam/

      cold water

      Indirect heating

      Secondary-side

      stoppering/Circulation

      HE-12RH-6
      Model

      Hot water

      temperature

      Rated heat

      output

      kW

      (kcal/h)

      Power

      source

      (V)

      Frequency

      (Hz)

      Electrical

      capacity

      (kW)

      Current

      rating

      (A)

      Operating

      pressure range

      (MPa)

      Operating

      pressure range

      (psig)

      Hot water

      supply pressure

      (℃) (℉) Steam

      Cold

      water

      Steam

      Cold

      water

      (MPa) (psig)
      HE-12RH-5 30 - 95 86 - 203

      838

      (720,000)

      AC200

      (3-phase)

      50 2.8 11.3

      0,2 - 0,35

      (flow pressure)

      0,1 - 0,4

      (flow pressure)

      29 - 50.8

      (flow pressure)

      14.5 - 58

      (flow pressure)

      0,2
      (During max. supply)
      29
      (During max. supply)
      HE-12RH-6 60 2.7 9.9

      *Can potentially meet these flange standards: JIS 10K
      ● Please note that the interior of the body is not waterproof or dustproof.
      ● Standard equipment
      ・Safety devices: Low water level protection device, overheating prevention device, pump overload protection device
      ・Wetted part material:Stainless Steel and Bronze
      ・Indoor use
      ・Internal tank
      ● Other customizations are also possible. Please feel free to inquire.

      ・Wetted part material: All Stainless Steel (Passed leaching performance test)
      ・Suitable for outdoor use
      ・Supports external tank use
      ・Remote operation, timer-based automatic operation, etc.
      *Custom manufacturing with user-specified materials, water supply volume, and other specifications is possible.

      Flow Rate / Output Temperature Diagram (by Temperature)




      Circulation System
