D Series | Diaphragm Steam Traps

Steam Traps D Series | Diaphragm Steam Traps DC2R (for Sterilizers)

Steam Traps D Series | Diaphragm Steam Traps

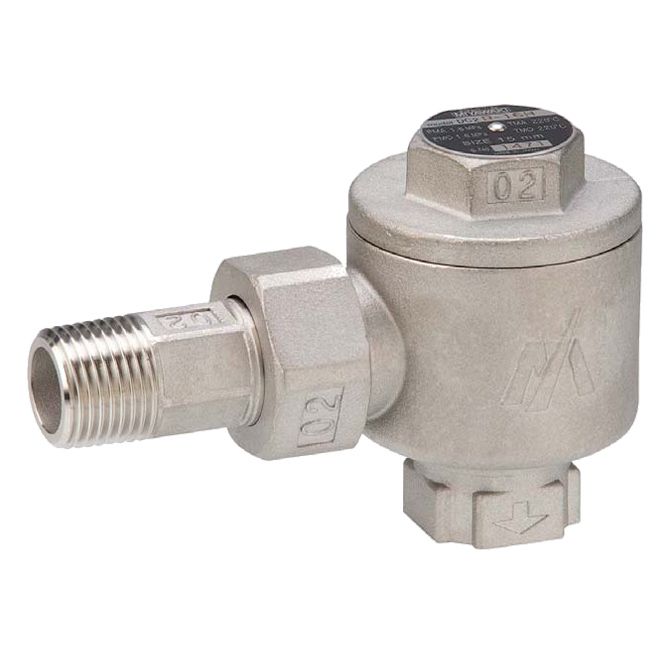

DC2R (for Sterilizers)

  • SCCV System
  • Stainless Steel
  • Supports condensate recovery
  • Horizontal installation
  • Vertical installation
  • Bypass function
  • Auto blow-off
    • Option
      - ASTM available
    Steam Traps D Series | Diaphragm Steam Traps DC2R (for Sterilizers)

    Features/Applications

    Features

    • No condensate left over

      Uses a diathermo (thermoelement) that starts to close at 5℃ (9℉) below saturation temperature.
      No condensate is left behind in the orifice at the bottom of the body when the device stops, which prevents bacteria from forming.

    • Stainless steel

      The body and main parts of the product are made from stainless steel, giving it superb corrosion-resistance.

    • Compact design

      Can be installed in small spaces.

    • Easy maintenance

      Less components make maintenance and inspection easy.

    Typical applications

    Suitable for industrial-use sanitizers.

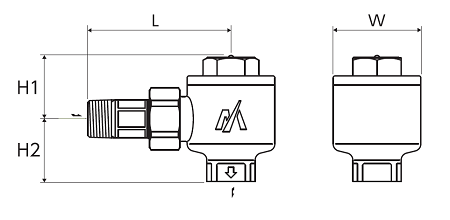

    Dimensions/Weight

    Dimensions/Weight




    Size Dimensions (mm) Dimensions (in) Weight
    L H1 H2 W L H1 H2 W (kg) (lb)

    1/2”

    80 35 35 49 3.1 1.4 1.4 1.9 0,7 1.5

    Specifications

    Model Connection

    Max. operating

    pressure

    Max. operating

    pressure

    differential

    Max. operating

    temperature

    Valve opening

    temperature

    Body

    material

    Type Size

    PMO

    (MPa)

    PMO

    (psig)

    (MPa) (psig)

    TMO

    (℃)

    TMO

    (℉)

    (℃) (℉)
    DC2R-16H

    Inlet-side:

    Male screw (R)
    Outlet-side:

    Female screw (Rc)

    1/2”

    1,6 230 1,6 230 220 428

    5℃ below

    saturation

    temperature

    9℉ below

    saturation

    temperature

    Stainless

    steel

    SCS13A



    ●Maximum allowable pressure (PMA): 1,6MPa (230psig) (at 220℃ (428℉))
        PMA is the pressure that can be tolerated by pressure-resistant parts (body).

    ●Maximum allowable temperature (TMA): 220℃ (428℉) (at 1,6MPa (230psig))
        TMA is the temperature that can be tolerated by the main unit (body).

    *Also available without orifice (DC2-16H).

    Discharge Capacity



    ●The condensate flow rate shown assumes a condensate temperature at approximately 10℃ (18℉) below saturation temperature.

    Features

    • No condensate left over

      Uses a diathermo (thermoelement) that starts to close at 5℃ (9℉) below saturation temperature.
      No condensate is left behind in the orifice at the bottom of the body when the device stops, which prevents bacteria from forming.

    • Stainless steel

      The body and main parts of the product are made from stainless steel, giving it superb corrosion-resistance.

    • Compact design

      Can be installed in small spaces.

    • Easy maintenance

      Less components make maintenance and inspection easy.

    Typical applications

    Suitable for industrial-use sanitizers.

    Dimensions/Weight




    Size Dimensions (mm) Dimensions (in) Weight
    L H1 H2 W L H1 H2 W (kg) (lb)

    1/2”

    80 35 35 49 3.1 1.4 1.4 1.9 0,7 1.5
    Model Connection

    Max. operating

    pressure

    Max. operating

    pressure

    differential

    Max. operating

    temperature

    Valve opening

    temperature

    Body

    material

    Type Size

    PMO

    (MPa)

    PMO

    (psig)

    (MPa) (psig)

    TMO

    (℃)

    TMO

    (℉)

    (℃) (℉)
    DC2R-16H

    Inlet-side:

    Male screw (R)
    Outlet-side:

    Female screw (Rc)

    1/2”

    1,6 230 1,6 230 220 428

    5℃ below

    saturation

    temperature

    9℉ below

    saturation

    temperature

    Stainless

    steel

    SCS13A



    ●Maximum allowable pressure (PMA): 1,6MPa (230psig) (at 220℃ (428℉))
        PMA is the pressure that can be tolerated by pressure-resistant parts (body).

    ●Maximum allowable temperature (TMA): 220℃ (428℉) (at 1,6MPa (230psig))
        TMA is the temperature that can be tolerated by the main unit (body).

    *Also available without orifice (DC2-16H).



    ●The condensate flow rate shown assumes a condensate temperature at approximately 10℃ (18℉) below saturation temperature.
