D Series | Diaphragm Steam Traps

Steam Traps D Series | Diaphragm Steam Traps DF1

Steam Traps D Series | Diaphragm Steam Traps

DF1

  • SCCV System
  • Stainless Steel
  • Supports condensate recovery
  • Horizontal installation
  • Vertical installation
  • Bypass function
  • Auto blow-off
    • Option
      - Customized flange face-to-face
    Steam Traps D Series | Diaphragm Steam Traps DF1

    Features/Applications

    Features

    • Compact design

      Can be installed in small spaces.

    • No steam leaks

      Operates below saturation temperature, resulting in no steam leaks and great energy saving performance.

    • Easy maintenance

      Less components make maintenance and inspection easy.

    Typical applications

    Suitable for foodstuff devices, bio devices, compact heat exchangers, tank heating, main heat pipes, steam tracing, cleaning devices, and other such applications.

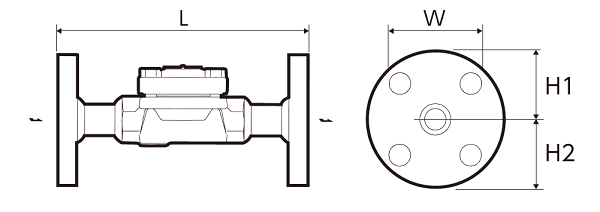

    Dimensions/Weight

    Dimensions/Weight

    Screwed




    Connections Size Dimensions (mm) Dimensions (in) Weight
    L H1 H2 W L H1 H2 W (kg) (lb)
    Rc,NPT 1/2” 85 36 18 62 3.4 1.4 0.7 2.4 1,0 2.2
    3/4” 100 40 23 3.9 1.6 0.9 1,2 2.6
    1”





    Flanged




    Connections Size Dimensions (mm) Dimensions (in) Weight
    L H1 H2 W L H1 H2 W (kg) (lb)
    JIS,ASME 150,300 lb 1/2” 175 36 18 62 6.9 1.4 0.7 2.4 2,3 5.0
    3/4” 195 40 23 7.7 1.6 0.9 3,6 7.9
    1” 215 8.5

    4,3

    9.5
    Connections Size Dimensions (mm) Dimensions (in) Weight
    L H1 H2 W L H1 H2 W (kg) (lb)
    DIN PN40 DN15 150 36 18 62 5.9 1.4 0.7 2.4 2,3 5.0
    DN20 3,6 7.9
    DN25 160 6.3 4,3 9.5

    *Customized face-to-face dimensions on request.
    *Please contact MIYAWAKI for further information.



    Socket Weld




    Connections Size Dimensions (mm) Dimensions (in) Weight
    L H1 H2 W L H1 H2 W (kg) (lb)
    JIS,ASME,DIN 1/2” 160 36 18 62 6.3 1.4 0.7 2.4

    1,4

    3.1
    3/4”
    1”

    Specifications

    Model Connection

    Max. operating

    pressure

    Max. operating

    pressure differential

    Max. operating

    temperature

    Valve opening

    temperature

    Body

    material

    Type Size (MPa) (psig) (MPa) (psig) (℃) (℉) (℃) (℉)
    DF1-21H

    Screwed

    Rc,NPT

    1/2” 2,1 305 2,1 305 235 455

    5℃ below

    saturation

    temperature

    9℉ below

    saturation

    temperature

    Forged steel

    A105

    3/4”
    1”
    DF1-21HF

    Flanged

    FF,RF*

    1/2”
    3/4”
    1”
    DF1-21HW

    Socket Weld

    SW

    1/2”
    3/4”
    1”
    DF1-21L

    Screwed

    Rc,NPT

    1/2” 2,1 305 2,1 305 235 455

    15℃ below

    saturation

    temperature

    27℉ below

    saturation

    temperature

    Forged steel

    A105

    3/4”
    1”
    DF1-21LF

    Flanged

    FF,RF*

    1/2”
    3/4”
    1”
    DF1-21LW

    Socket Weld

    SW

    1/2”
    3/4”
    1”

    *Available flange standards: ASME/JPI 150lb, 300lb, DIN PN40, JIS 10K, 16K, 20K

    Discharge Capacity




    ●The condensate flow rate shown assumes a condensate temperature at approximately 10℃ (18℉) for a DF1-21H and 20℃ (minus 36℉) for a DF1-21L below saturation temperature.

    Features

    • Compact design

      Can be installed in small spaces.

    • No steam leaks

      Operates below saturation temperature, resulting in no steam leaks and great energy saving performance.

    • Easy maintenance

      Less components make maintenance and inspection easy.

    Typical applications

    Suitable for foodstuff devices, bio devices, compact heat exchangers, tank heating, main heat pipes, steam tracing, cleaning devices, and other such applications.

    Dimensions/Weight

    Screwed




    Connections Size Dimensions (mm) Dimensions (in) Weight
    L H1 H2 W L H1 H2 W (kg) (lb)
    Rc,NPT 1/2” 85 36 18 62 3.4 1.4 0.7 2.4 1,0 2.2
    3/4” 100 40 23 3.9 1.6 0.9 1,2 2.6
    1”





    Flanged




    Connections Size Dimensions (mm) Dimensions (in) Weight
    L H1 H2 W L H1 H2 W (kg) (lb)
    JIS,ASME 150,300 lb 1/2” 175 36 18 62 6.9 1.4 0.7 2.4 2,3 5.0
    3/4” 195 40 23 7.7 1.6 0.9 3,6 7.9
    1” 215 8.5

    4,3

    9.5
    Connections Size Dimensions (mm) Dimensions (in) Weight
    L H1 H2 W L H1 H2 W (kg) (lb)
    DIN PN40 DN15 150 36 18 62 5.9 1.4 0.7 2.4 2,3 5.0
    DN20 3,6 7.9
    DN25 160 6.3 4,3 9.5

    *Customized face-to-face dimensions on request.
    *Please contact MIYAWAKI for further information.



    Socket Weld




    Connections Size Dimensions (mm) Dimensions (in) Weight
    L H1 H2 W L H1 H2 W (kg) (lb)
    JIS,ASME,DIN 1/2” 160 36 18 62 6.3 1.4 0.7 2.4

    1,4

    3.1
    3/4”
    1”
    Model Connection

    Max. operating

    pressure

    Max. operating

    pressure differential

    Max. operating

    temperature

    Valve opening

    temperature

    Body

    material

    Type Size (MPa) (psig) (MPa) (psig) (℃) (℉) (℃) (℉)
    DF1-21H

    Screwed

    Rc,NPT

    1/2” 2,1 305 2,1 305 235 455

    5℃ below

    saturation

    temperature

    9℉ below

    saturation

    temperature

    Forged steel

    A105

    3/4”
    1”
    DF1-21HF

    Flanged

    FF,RF*

    1/2”
    3/4”
    1”
    DF1-21HW

    Socket Weld

    SW

    1/2”
    3/4”
    1”
    DF1-21L

    Screwed

    Rc,NPT

    1/2” 2,1 305 2,1 305 235 455

    15℃ below

    saturation

    temperature

    27℉ below

    saturation

    temperature

    Forged steel

    A105

    3/4”
    1”
    DF1-21LF

    Flanged

    FF,RF*

    1/2”
    3/4”
    1”
    DF1-21LW

    Socket Weld

    SW

    1/2”
    3/4”
    1”

    *Available flange standards: ASME/JPI 150lb, 300lb, DIN PN40, JIS 10K, 16K, 20K




    ●The condensate flow rate shown assumes a condensate temperature at approximately 10℃ (18℉) for a DF1-21H and 20℃ (minus 36℉) for a DF1-21L below saturation temperature.
