E Series | Inverted Bucket Steam Traps

Steam Traps E Series | Inverted Bucket Steam Traps ER120

Steam Traps E Series | Inverted Bucket Steam Traps

ER120

  • SCCV System
  • Stainless Steel
  • Supports condensate recovery
  • Horizontal installation
  • Vertical installation
  • Bypass function
  • Auto blow-off

    1980 Received the Award for Excellence in Energy Saving

    Steam Traps E Series | Inverted Bucket Steam Traps ER120

    Features/Applications

    Features

    • Complete steam containment

      A double steam separation mechanism (implemented with a U-shaped duct and inverted bucket) provides reliable steam separation and ensures trap tightness.

    • Superb durability

      Offers superb durability thanks to the SCCV System valve and robust super lever, as well as stainless steel internal components.

    • Free from steam and air locking

      This model is free from steam and air locking due to a small air vent hole in the top of the bucket (discharges hot air and non-condensable gases).

    • Condensate recovery

      With its high degree of back pressure tolerance, this model supports condensate recovery at pressures up to 90% of the upstream pressure.

    • Easy maintenance

      For quick and easy maintenance, this model can be repaired directly in line.


    *’SCCV System’ is an abbreviation of Self Closing and Centering Valve System.

    Typical applications

    Suitable for use in a wide range of fields including the plant industry, foodstuff manufacturing, dyeing, cleaning, and air conditioning.

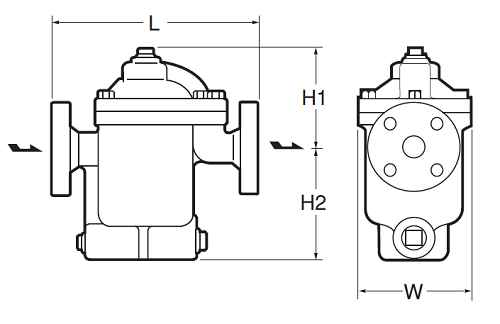

    Dimensions/Weight

    Dimensions/Weight




    Size Dimensions (mm) Dimensions (in) Weight
    L H1 H2 W L H1 H2 W (kg) (lb)
    1 1/2” 400 220 217 235 15.8 8.7 8.5 9.3 46,0 101.4
    2”
    2 1/2”

    Specifications

    Model Connection

    Max. operating

    pressure

    Max. operating

    pressure differential

    Max. operating

    temperature

    Body material
    Type Size (MPa) (psig) (MPa) (psig) (℃) (℉)
    ER120-8

    Flanged

    FF,RF*

    1 1/2” 0,8 116 0,8 116 220 428

    Cast iron

    FC250

    2”
    2 1/2”
    ER120-16 1 1/2” 1,6 230 1,6 230
    2”
    2 1/2”

    *Available flange standards: ASME/JPI 150lb, 300lb,  DIN PN16,  JIS 10K, 16K, 20K (ASME/JPI 300lb not available for 2-1/2”)

    Discharge Capacity


    Installation Examples


    Features

    • Complete steam containment

      A double steam separation mechanism (implemented with a U-shaped duct and inverted bucket) provides reliable steam separation and ensures trap tightness.

    • Superb durability

      Offers superb durability thanks to the SCCV System valve and robust super lever, as well as stainless steel internal components.

    • Free from steam and air locking

      This model is free from steam and air locking due to a small air vent hole in the top of the bucket (discharges hot air and non-condensable gases).

    • Condensate recovery

      With its high degree of back pressure tolerance, this model supports condensate recovery at pressures up to 90% of the upstream pressure.

    • Easy maintenance

      For quick and easy maintenance, this model can be repaired directly in line.


    *’SCCV System’ is an abbreviation of Self Closing and Centering Valve System.

    Typical applications

    Suitable for use in a wide range of fields including the plant industry, foodstuff manufacturing, dyeing, cleaning, and air conditioning.

    Dimensions/Weight




    Size Dimensions (mm) Dimensions (in) Weight
    L H1 H2 W L H1 H2 W (kg) (lb)
    1 1/2” 400 220 217 235 15.8 8.7 8.5 9.3 46,0 101.4
    2”
    2 1/2”
    Model Connection

    Max. operating

    pressure

    Max. operating

    pressure differential

    Max. operating

    temperature

    Body material
    Type Size (MPa) (psig) (MPa) (psig) (℃) (℉)
    ER120-8

    Flanged

    FF,RF*

    1 1/2” 0,8 116 0,8 116 220 428

    Cast iron

    FC250

    2”
    2 1/2”
    ER120-16 1 1/2” 1,6 230 1,6 230
    2”
    2 1/2”

    *Available flange standards: ASME/JPI 150lb, 300lb,  DIN PN16,  JIS 10K, 16K, 20K (ASME/JPI 300lb not available for 2-1/2”)
