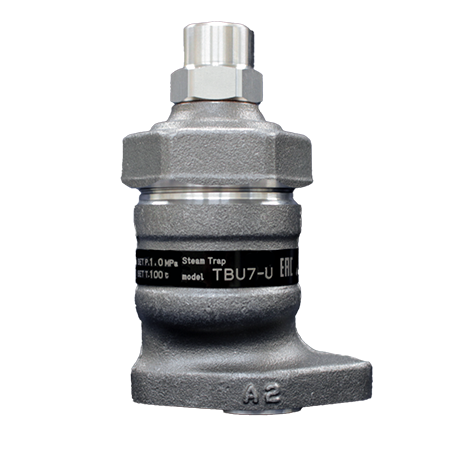

Steam Traps

Features

• Quick and Easy Replacement

  Universal connection allows removal with just two bolts, minimizing maintenance time and production downtime.

• Adjustable Temperature After Installation

  Temperature can be adjusted on-site to match operating conditions, preventing overheating and ensuring stable performance.

• Flexible Integration for Efficient and Simplified Piping

  Compatible with CTC-P and UNC for standard pipeline and manifold configurations, enabling efficient steam distribution and a simplified piping layout.

• Durable and Reliable Construction

  Stainless steel (A182 F316) body offers excellent corrosion resistance and long service life, even in harsh environments.

Dimensions/Weight



●Maximum allowable pressure (PMA): 5,0MPa (725psig)　 PMA is the pressure that can be tolerated by pressure-resistant parts (body).
●Maximum allowable temperature (TMA): 400℃ (752℉)　 TMA is the temperature that can be tolerated by pressure-resistant parts (body).
●Minimum operating differential pressure (⊿PMN): 0,01MPa (1.5psig)　⊿PMN is the minimum operating differential pressure between the trap inlet and outlet.

*It is possible to change the standard factory set temperature. Please specify the operating pressure and set temperature.

*Please refer to the installation manual how to adjust the set temperature.

● Δt value is the difference of temperature between the real temperature of the discharging condensate and the adjusted temperature of the trap. The temperature difference (⊿t) upon the initial passage of air is great, and indicates that the flow rate will also increase.
● The condensate flow rate listed in this table is the value when the product is set to 100℃ and discharging condensate at 90℃.

* The "Cold Water" curve shows the trap's maximum capacity when discharaging cold condensate.
* The Δt=10℃ curve shows the trap's maximum capacity when discharging hot condensate at a temperature of 10°C (18°F) below the adjusted temperature of the trap.
