Steam Traps with Two-Bolt Connection

Steam Traps Steam Traps with Two-Bolt Connection SU2-32U

Steam Traps Steam Traps with Two-Bolt Connection

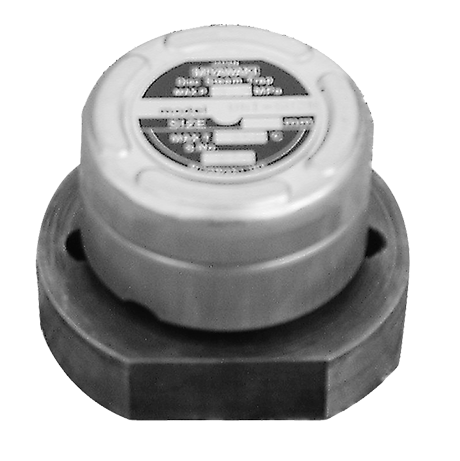

SU2-32U

  • SCCV System
  • Stainless Steel
  • Supports condensate recovery
  • Horizontal installation
  • Vertical installation
  • Bypass function
  • Auto blow-off
    Steam Traps Steam Traps with Two-Bolt Connection SU2-32U

    Features/Applications

    Features

    • Compact design

      Can be installed in small space or in applications like manifolds.

    • Stainless steel

      Corrosion-resistance stainless steel providing superb durability.

    • No steam leaks

      Operates below saturation temperature, resulting in no steam leaks and great energy saving performance.

    • Auto blow off and air vent

      Thanks to a bimetal ring, the trap smoothly discharges initial air and cold condensate. (Auto blow-off mechanism)

    • Easy maintenance

      Less components make maintenance and inspection easy. In combination with UNC connector, the universal traps can be quickly exchanged at the installation side without opening the line.

    Typical applications

    Suitable for high temperature and high pressure steam main lines, steam tracing, and other such applications.

    Dimensions/Weight

    Dimensions/Weight






    Connection Dimensions (mm) Dimensions (in) Weight
    D H W D H W kg lb
    Universal
    Two-bolt Connection
    60 55 70 2.4 2.2 2.8 0,8 1.8

    Specifications

    Connection

    Max. operating

    pressure

    Max. operating

    temperature

    Body material
    MPa psig °C °F
    Universal
    Two-bolt Connection
    3,2 464 350 662 Stainless Steel
    SUS420J2















    Discharge Capacity


    Features

    • Compact design

      Can be installed in small space or in applications like manifolds.

    • Stainless steel

      Corrosion-resistance stainless steel providing superb durability.

    • No steam leaks

      Operates below saturation temperature, resulting in no steam leaks and great energy saving performance.

    • Auto blow off and air vent

      Thanks to a bimetal ring, the trap smoothly discharges initial air and cold condensate. (Auto blow-off mechanism)

    • Easy maintenance

      Less components make maintenance and inspection easy. In combination with UNC connector, the universal traps can be quickly exchanged at the installation side without opening the line.

    Typical applications

    Suitable for high temperature and high pressure steam main lines, steam tracing, and other such applications.

    Dimensions/Weight






    Connection Dimensions (mm) Dimensions (in) Weight
    D H W D H W kg lb
    Universal
    Two-bolt Connection
    60 55 70 2.4 2.2 2.8 0,8 1.8
    Connection

    Max. operating

    pressure

    Max. operating

    temperature

    Body material
    MPa psig °C °F
    Universal
    Two-bolt Connection
    3,2 464 350 662 Stainless Steel
    SUS420J2
