Check Valves
Ancillary Equipment Check Valves
CX1
Features/Applications
Features
Easy attachment and detachment with a ferrule connection
Compact design
Face-to-face (height) 30mm (1.1in)
Superb durability
The body of the product is made from stainless steel, making it durable and corrosion-resistant.
Metal seal type
Flexible installation
This product can be installed either horizontally or vertically.
Available combination use with a steam trap
It can be use in combination with a steam trap (DX1)
We sell DX1 separately.
Typical applications
Suitable for steam and water (condensate) lines
Dimensions/Weight
Dimensions/Weight
| Size | Dimensions (mm) | Dimensions (in) | Weight | |||
| L | W | L | W | (kg) | (lb) | |
|
38mm (ISO standard) |
30 | 50,5 | 1.2 | 2.0 | 0,20 | 0.4 |
Specifications
| Model | Connection |
Max. operating pressure |
Max. operating pressure differential |
Opening pressure |
Max. operating temperature |
Medium |
Body material |
|||||
| Type | Size |
PMO (MPa) |
PMO (psig) |
(MPa) | (psig) | (MPa) | (psig) | (℃) | (℉) | |||
| CX1 |
Tri-Clamp |
38mm (ISO standard) |
0,5 | 72.5 | 0,5 | 72.5 | 0,003 | 0.44 | 220 | 428 |
Steam/ water |
Stainless steel SUS316 |

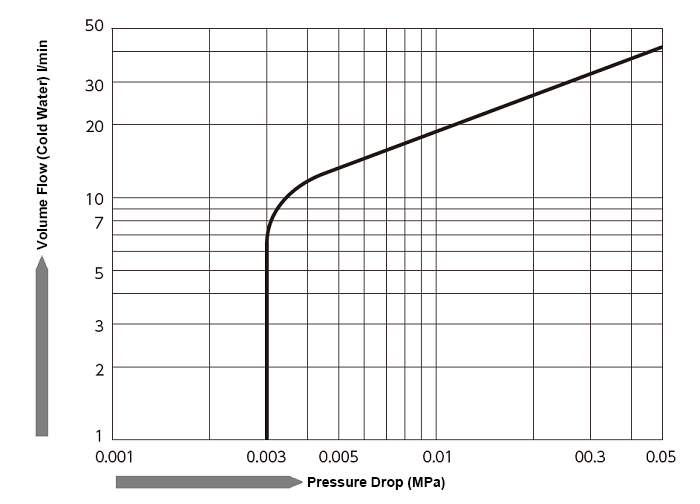

Pressure loss
Download
* Membership registration is required to download the documents.
Features
Easy attachment and detachment with a ferrule connection
Compact design
Face-to-face (height) 30mm (1.1in)
Superb durability
The body of the product is made from stainless steel, making it durable and corrosion-resistant.
Metal seal type
Flexible installation
This product can be installed either horizontally or vertically.
Available combination use with a steam trap
It can be use in combination with a steam trap (DX1)
We sell DX1 separately.
Typical applications
Suitable for steam and water (condensate) lines
Dimensions/Weight
| Size | Dimensions (mm) | Dimensions (in) | Weight | |||
| L | W | L | W | (kg) | (lb) | |
|
38mm (ISO standard) |
30 | 50,5 | 1.2 | 2.0 | 0,20 | 0.4 |
| Model | Connection |
Max. operating pressure |
Max. operating pressure differential |
Opening pressure |
Max. operating temperature |
Medium |
Body material |
|||||
| Type | Size |
PMO (MPa) |
PMO (psig) |
(MPa) | (psig) | (MPa) | (psig) | (℃) | (℉) | |||
| CX1 |
Tri-Clamp |
38mm (ISO standard) |
0,5 | 72.5 | 0,5 | 72.5 | 0,003 | 0.44 | 220 | 428 |
Steam/ water |
Stainless steel SUS316 |
