D Series | Diaphragm Steam Traps

Steam Traps D Series | Diaphragm Steam Traps DX1 (for Sanitation Systems)

Steam Traps D Series | Diaphragm Steam Traps

DX1 (for Sanitation Systems)

  • SCCV System
  • Stainless Steel
  • Supports condensate recovery
  • Horizontal installation
  • Vertical installation
  • Bypass function
  • Auto blow-off
    Steam Traps D Series | Diaphragm Steam Traps DX1 (for Sanitation Systems)

    Features/Applications

    Features

    • Easy attachment and detachment with a ferrule connection



    • Compact design

      Face-to-face (height) 30mm (1.18in)

    • Made completely of stainless steel



    • DX1R with orifice to prevent condensate accumulation also available.



    • Can be used in a set with a check valve (CX1). (available separately)



    Typical applications

    Steam / water (condensate) lines

    Dimensions/Weight

    Dimensions/Weight





    Size (mm) Size (in) Dimensions (mm) Dimensions (in) Weight
    L W L W (kg) (lb)

    38

    (ISO standard)

    1.5

    (ISO standard)

    30 50,5 1.2 2.0 0,18 0.4

    Specifications

    Model Connection

    Max. operating

    pressure

    Max. operating

    pressure differential

    Max. operating

    temperature

    Valve opening

    temperature

    Body

    material

    Type Size Size (MPa) (psig) (MPa) (psig) (℃) (℉) (℃) (℉)
    DX1-5

      Ferrule

    38mm

    (ISO

    standard)

    1.5 in

    (ISO

    standard)

    0,5 72.5 0,5 72.5 160 320

    5℃ below

    Saturation

    temperature

    9℉ below

    Saturation

    temperature

    Stainless

    steel

    SUS316

    DX1R-5*
    (with orifice)

    *DX1R: The design (with orifice) prevents condensate from accumulating in the body in the event of a halt in the supply of steam.

    ●Maximum allowable pressure (PMA): 1,0MPa (145psig)  PMA is the pressure that can be tolerated by pressure-resistant parts (body).
    ●Maximum allowable temperature (TMA): 185℃ (365℉)  TMA is the temperature that can be tolerated by the main unit (body).
    ●Min. operating pressure differential (⊿PMN): 0,01MPa (1.5psig) ⊿PMN is the minimum operating differential pressure between the trap inlet and outlet.

    ●Surface height: Ra1.6a (Ra: Arithmetic average height)

    *You can use this in a set with a check valve (CX1). (available separately)

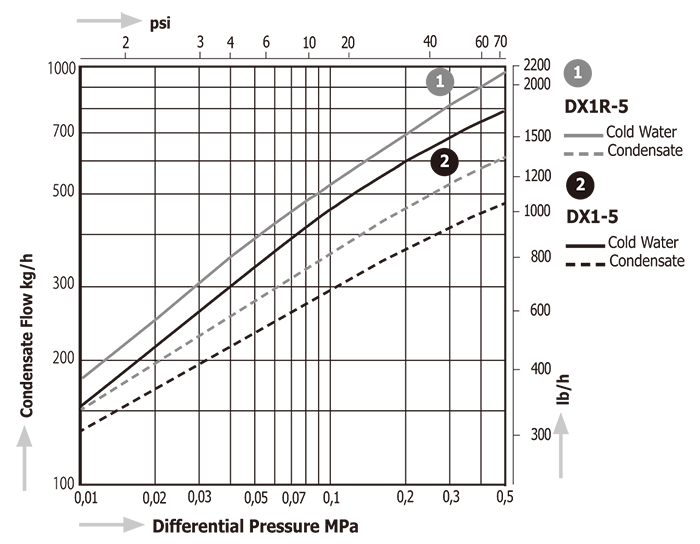

    Discharge Capacity



    ●The condensate flow rate shown assumes a condensate temperature at approximately 10℃ (18℉) below saturation temperature.

    Features

    • Easy attachment and detachment with a ferrule connection



    • Compact design

      Face-to-face (height) 30mm (1.18in)

    • Made completely of stainless steel



    • DX1R with orifice to prevent condensate accumulation also available.



    • Can be used in a set with a check valve (CX1). (available separately)



    Typical applications

    Steam / water (condensate) lines

    Dimensions/Weight





    Size (mm) Size (in) Dimensions (mm) Dimensions (in) Weight
    L W L W (kg) (lb)

    38

    (ISO standard)

    1.5

    (ISO standard)

    30 50,5 1.2 2.0 0,18 0.4
    Model Connection

    Max. operating

    pressure

    Max. operating

    pressure differential

    Max. operating

    temperature

    Valve opening

    temperature

    Body

    material

    Type Size Size (MPa) (psig) (MPa) (psig) (℃) (℉) (℃) (℉)
    DX1-5

      Ferrule

    38mm

    (ISO

    standard)

    1.5 in

    (ISO

    standard)

    0,5 72.5 0,5 72.5 160 320

    5℃ below

    Saturation

    temperature

    9℉ below

    Saturation

    temperature

    Stainless

    steel

    SUS316

    DX1R-5*
    (with orifice)

    *DX1R: The design (with orifice) prevents condensate from accumulating in the body in the event of a halt in the supply of steam.

    ●Maximum allowable pressure (PMA): 1,0MPa (145psig)  PMA is the pressure that can be tolerated by pressure-resistant parts (body).
    ●Maximum allowable temperature (TMA): 185℃ (365℉)  TMA is the temperature that can be tolerated by the main unit (body).
    ●Min. operating pressure differential (⊿PMN): 0,01MPa (1.5psig) ⊿PMN is the minimum operating differential pressure between the trap inlet and outlet.

    ●Surface height: Ra1.6a (Ra: Arithmetic average height)

    *You can use this in a set with a check valve (CX1). (available separately)



    ●The condensate flow rate shown assumes a condensate temperature at approximately 10℃ (18℉) below saturation temperature.
