Thermodynamic Disc Traps

Air Traps Thermodynamic Disc Traps AV

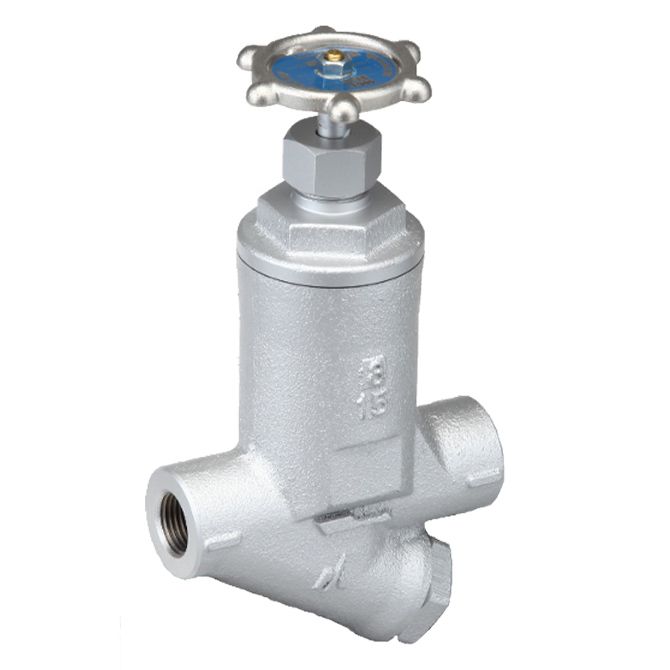

Air Traps Thermodynamic Disc Traps

AV

  • SCCV System
  • Stainless Steel
  • Supports condensate recovery
  • Horizontal installation
  • Vertical installation
  • Bypass function
  • Auto blow-off

    Pressure-balancing lines are not required

    Air Traps Thermodynamic Disc Traps AV

    Features/Applications

    Features

    • No pressure-balancing lines are required

      No need for pressure-balancing lines - saves additional piping

    • Incorporated bypass design

      Incorporated bypass design makes cost savings for piping.

    • Easy removal of scale and oil

      It can remove scale and oil easily in operation by opening blow valve with handle.

    • Easy maintenance

      The minimum of moving parts and an easy in-line access ensures easy and fast maintenance.

    Typical applications

    Suitable for air pipings, aftercoolers, receiver tanks, and other such applications.

    Dimensions/Weight

    Dimensions/Weight




    Model Size Dimensions (mm) Dimensions (in) Weight
    L H1 H2 W L H1 H2 W (kg) (lb)
    AV-4 1/2” 110 155 60 65 4.3 6.1 2.4 2.6 2,4 5.3
    AV-6 3/4” 120 65 4.7 2.6 2,5 5.5
    AV-8 1” 70 2.8 2,7 6.0

    Specifications

    Model Connection

    Max.operating

    pressure

    Max.operating

    pressure differential

    Max.operating

    temperature

    Body

    material

    Type Size (MPa) (psig) (MPa) (psig) (℃) (℉)
    AV-4

    Screwed

    Rc,NPT

    1/2” 0,97 140.65 0,97 140.65 150 302

    Cast iron

    FC250

    AV-6 3/4”
    AV-8 1”

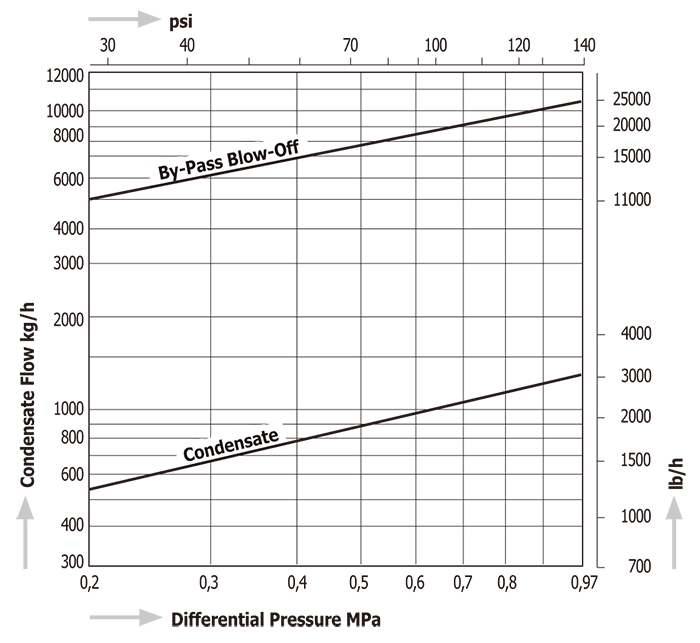

    Discharge Capacity


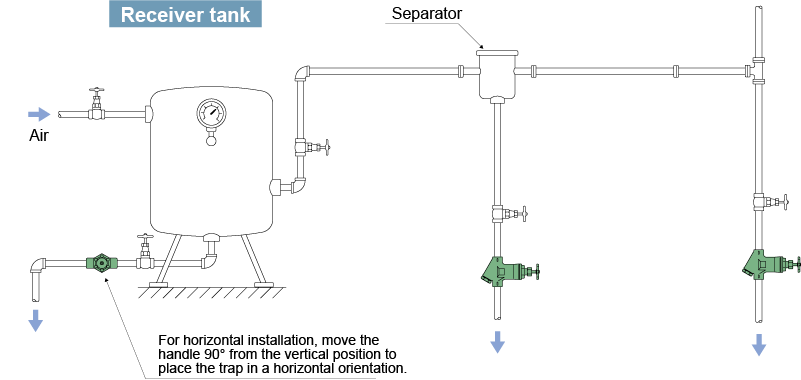

    Installation Examples


    ■Related Products Models for reference
     Separator   H3  H5

    Features

    • No pressure-balancing lines are required

      No need for pressure-balancing lines - saves additional piping

    • Incorporated bypass design

      Incorporated bypass design makes cost savings for piping.

    • Easy removal of scale and oil

      It can remove scale and oil easily in operation by opening blow valve with handle.

    • Easy maintenance

      The minimum of moving parts and an easy in-line access ensures easy and fast maintenance.

    Typical applications

    Suitable for air pipings, aftercoolers, receiver tanks, and other such applications.

    Dimensions/Weight




    Model Size Dimensions (mm) Dimensions (in) Weight
    L H1 H2 W L H1 H2 W (kg) (lb)
    AV-4 1/2” 110 155 60 65 4.3 6.1 2.4 2.6 2,4 5.3
    AV-6 3/4” 120 65 4.7 2.6 2,5 5.5
    AV-8 1” 70 2.8 2,7 6.0
    Model Connection

    Max.operating

    pressure

    Max.operating

    pressure differential

    Max.operating

    temperature

    Body

    material

    Type Size (MPa) (psig) (MPa) (psig) (℃) (℉)
    AV-4

    Screwed

    Rc,NPT

    1/2” 0,97 140.65 0,97 140.65 150 302

    Cast iron

    FC250

    AV-6 3/4”
    AV-8 1”

    ■Related Products Models for reference
     Separator   H3  H5
